Boom stand field-of-view configuration with a high-resolution digital camera and zoom lens optics.
Media Category: optical measuring systems
Multi-camera vision system
Create inspection programs that switch quickly between high-resolution digital cameras and control multiple illumination sources.
Full-Gantry high-power VisionGauge cartesian system
These cartesian systems feature fully programmable 3D motion for fast, repeatable motion on long distances, perfectly suited for dynamic inspections with high duty-cycles. Cartesian inspection systems are used in a variety of industrial production and quality control applications. They are also appropriate for part scanning, using VisionGauge’s® “scan mode” over a user-defined area.

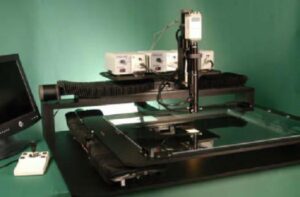

Open-frame, half-gantry cartesian measurement system
VisionGauge OnLine Cartesian Measurement systems are available in several customizable configurations, including closed and open frames, full and half gantry, featuring backlight, vibration tables, etc…

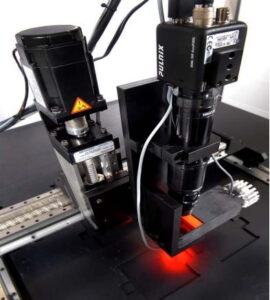

VisionGauge® High-Speed, High-Accuracy AOI System inspection area
VisionGauge® Online High-Speed AOI systems are automated inspection systems that support concurrent image analysis and stage motion for fast, accurate inspection results. It is a complete, fully-contained, self-standing unit in a full gantry configuration (i.e. the camera moves over the parts; the parts themselves do not move).
Small Automated Optical Inspection System (AOI System) for Analog Video
Optical Character Recognition and Verification System
VisionGauge® OnLine Optical Character Recognition and Verification Systems are ideal for industrial applications with requirements to automatically locate and read text. They also verify that text matches an expected character string, compute results statistics, export & exchange the results, produce reports, output signals depending on results, and much more.
These optical character recognition and verification systems include adapted, low distortion optics and programmable, computer-controlled illumination, for highly repeatable results.
Wide Field-of-View Optical Measurement System
VisionGauge wide field-of-view, high-resolution optical measurement systems use specialized long-working-distance telecentric optics to produce extremely crisp & clear imagery with extremely low distortion.

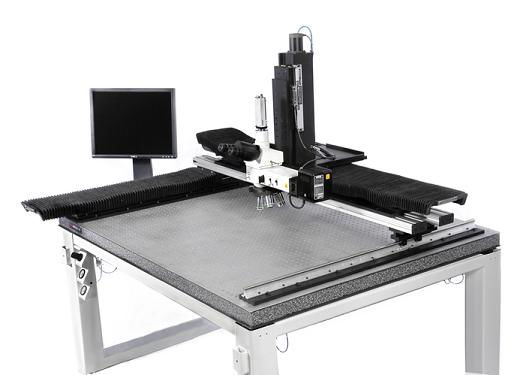

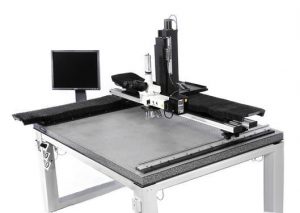

Cartesian Optical Measuring System (AOI system)
Full-gantry configuration Cartesian Optical Measuring System with VisionGauge software for fast and accurate positioning followed by vision inspection and high-accuracy field-of-view measurements.
High-Accuracy, High-Speed AOI Systems
High-accuracy, high-speed AOI systems with VisionGauge OnLine software provide fully-automated 3D inspection and measurement.
