300 Series Field-of-View Systems VisionGauge® Digital Optical Comparator

The 300-Series VisionGauge® Digital Optical Comparator Field-of-View Systems are extremely cost-effective systems that are ideal for smaller parts.

  • Automatically compare parts to their CAD data with our proprietary CAD Auto-Align™ and CAD Auto Pass/Fail™ tools, in seconds
  • Instantly computes and displays deviations-from-nominal and out-of-tolerance areas
  • No operator-to-operator variation
  • Extremely fast & easy-to-use!
  • Needs no overlays, templates or Mylars™
  • Full automated measurement capability
  • The best, highest-resolution, clearest & sharpest image available!
  • Joystick & barcode reader driven

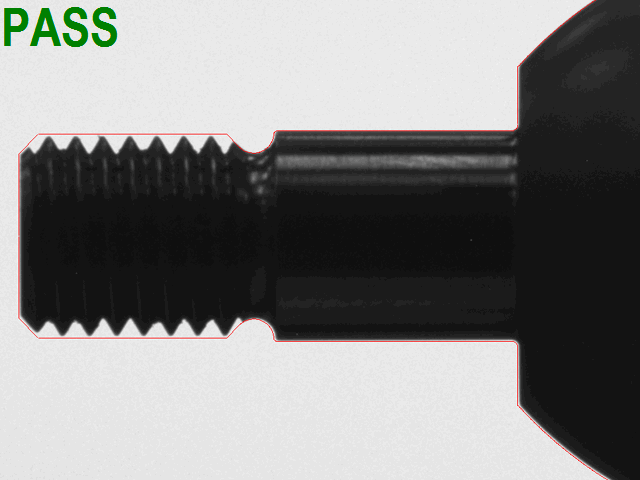

Automatic Detection of threads within spec
The groundbreaking CAD Auto Pass/Fail tool eliminates operator subjectivity
  • Intuitive software interface
  • Innovative patent pending technology
  • Accurate to +/- 0.0001" (2.5 μ)
  • Automatic image & data collection
  • Built-in SPC capability
  • All-LED computer-controlled multi-illumination modules (back, front square-on and front oblique) are standard!
  • High-resolution precision optics
  • No moving parts
  • No consumable parts
  • Convenient desktop configuration
  • Easy to learn and operate. You'll be up & running on "day one".
  • Perfect for both the shop floor and the quality control lab

The 300 Series VisionGauge® Digital Optical Comparators are extremely cost effective Field-of-View Systems that are ideal for smaller parts (up to 1.7" x 1.2").

They have an extended depth-of-field for tall parts (as high as 1.1") and a long working distance that provides ample clearance and room to work between the part and the lens.

They produce a stunning super-high-resolution image to carry out fine, detailed inspections.

Three different types of LED illumination are standard: collimated back, front off-axis (i.e. "dark field") and front on-axis (i.e. "bright field"). This allows the system to produce crisp, sharp edges and perform beautifully even when working with hard-to-image materials (for example: shiny, reflective or even translucent surfaces) and difficult geometries (such as deep holes).

VisionGauge® Digital Optical Comparators are complete, ready-to-run Windows-based solutions. They are delivered network-ready and include on-site installation, NIST-traceable calibration & training.

The 300 Series Field-of-View Systems are desktop instruments that have all of the functionality of the 500 Series VisionGauge® Digital Optical Comparators, with the sole exception that they are limited to smaller parts.

Overlay before CAD Auto-AlignmentOverlay after CAD Auto-Alignment

Proprietary CAD Auto-Align™ and CAD Auto Pass/Fail™ tools work almost instantly
and produce very accurate, operator-independent results
Diameter FOV measurement on a VisionGauge Digital Optical Comparator
Fast and accurate automated measurements
FOV distance measurement on a VisionGauge Digital Optical Comparator
Reverse Engineering a part on a VisionGauge Digital Optical Comparator
Reverse Engineer a part...
Desktop Configuration Dimensions of a 300 Series VisionGauge Digital Optical Comparator
Main unit overall dimensions (Model # VG300DOC-30V-20X)
Desktop Configuration Base Plate Dimensions of a 300 Series VisionGauge Digital Optical Comparator
All-purpose mounting hole pattern for easy & flexible part fixturing (in the case where parts are to be fixtured)
Quickly and easily check flexible and other hard-to-inspect parts against their CAD data on a VisionGauge Digital Optical Comparator
Quickly and easily check flexible and other hard-to-inspect parts against their CAD data
