Our systems achieve accuracies down to ±0.0001 inches under actual manufacturing conditions. This level of precision helps manufacturers meet the strict demands of fir tree turbine blade inspection in aerospace and power generation environments.
Fir tree turbine blade inspection is critical to ensuring safety, performance, and reliability in the demanding aerospace and power generation industries. The unique geometry of the fir tree root requires precise, repeatable measurement to verify proper fit within the turbine disk and to withstand extreme operating conditions.
With the VisionGauge® Digital Optical Comparator, manufacturers have an unparalleled solution for fir tree turbine blade measurement. VisionGauge® offers increased accuracy and higher throughput; it also works directly with your existing CAD data, all while eliminating operator-dependent variations.
Ready to learn about a faster and easier way to accurately compare a fir tree root to a CAD File?
Turbine blades are used in aircraft engines, power plants, and industrial systems to convert high-speed gas or steam into rotational motion. There are several different types of attachment mechanisms, usually referred to as “roots”. The specific root each blade uses to attach to a turbine disk depends on the blade’s performance requirements.

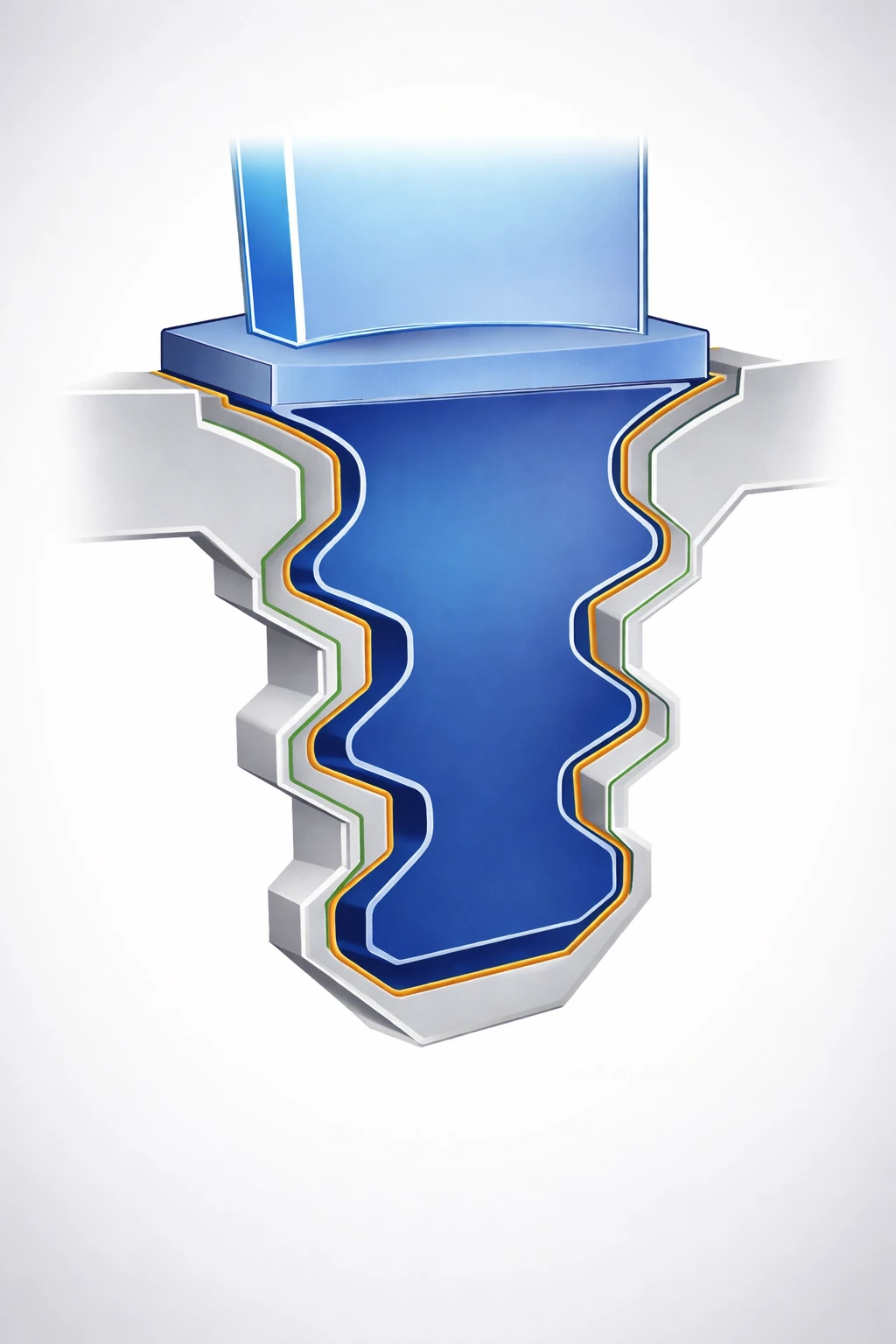

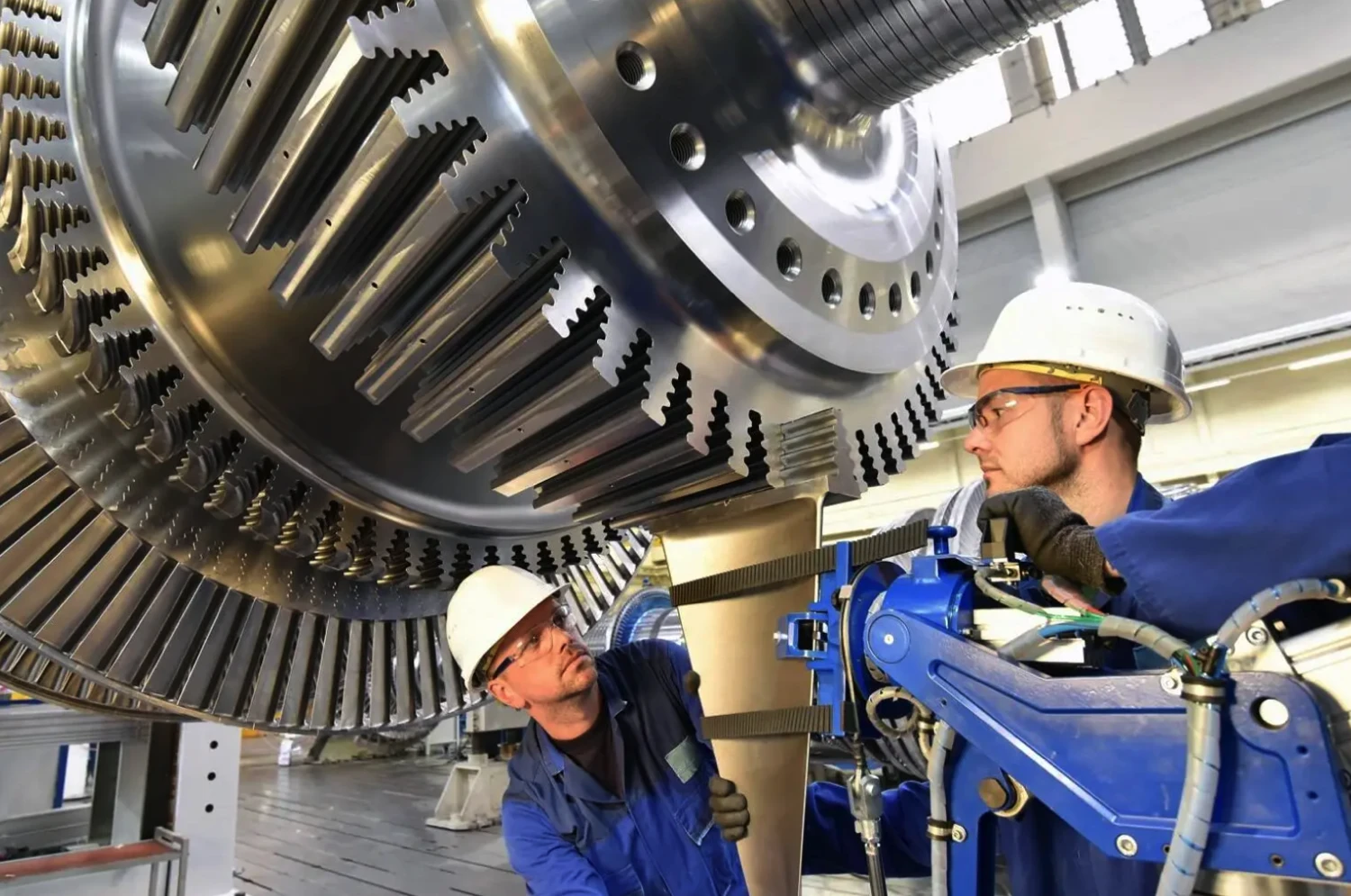

A fir tree turbine blade is secured to a disk using a fir tree root design. Similar to the silhouette of an actual tree, fir tree roots are multi-lobed with a high surface area, resulting in a larger shear area for carrying load. This type of blade root is typically used in high-load, high-stress environments, including elevated operating temperatures.
The fir tree turbine blade root is a complex geometric structure. Its key features include:
This complexity improves performance and durability by distributing load across multiple contact points. However, it also makes accurate measurement necessary and difficult.
Because of its complex design, fir tree turbine roots must be manufactured to the correct specification to fit well within a turbine disk. Proper fit ensures consistent contact across the blade root and disk slot surfaces. This proper fit prevents gaps, uneven loading, or localized stress concentrations.
With its optimized shape, the fir tree turbine root plays an essential role in load distribution under centrifugal force. Even small deviations in geometric design can impact stress distribution, affecting the life of the turbine blade and/or disk. This makes accurate, repeatable fir tree turbine blade measurement critical.
Many turbine disk manufacturers currently use 1950s-era inspection and measurement technology. Traditional optical comparators are outdated, have slow processing times, and are prone to high rates of operator-dependent variation. Poor throughput and a lack of automation make current measuring methodologies less than ideal.
In order to ensure the most accurate and reliable fir tree turbine blade measurement, manufacturers should seek more advanced optical measuring systems.
Our systems are designed to meet the high demands of fir tree turbine blade measurement. We have several patented tools that are transformative to optical comparator usage.
These include:
VisionGauge®’s patented CAD Auto-Align™ tool allows you to drastically reduce inspection time and achieve greater measurement accuracy. It is a general-purpose tool with CAD-to-part automatic alignment that can perform both translation and rotation alignment.
This is especially useful for fir tree blade roots. With their tight tolerances and complex profiles, even small misalignments can lead to incorrect measurements.
With traditional optical comparators, many measurements are operator-dependent, leading to variation from one operator to another. CAD Auto-Align™ combats this by automatically aligning a CAD overlay to a part (in this case, a fir tree blade root) and undergoing a fully automated CAD-to-part comparison.
Want to learn more about how CAD Auto-Align™ can help you? Contact us for a demonstration on your part!
With the VisionGauge® Digital Optical Comparator’s patented CAD Auto Pass/Fail™ tool, your operator can automatically determine if a fir tree blade root is within tolerance. This tool is very accurate and enables real-time assessment.
In fir tree turbine blade measurements, the CAD Auto-Pass/Fail™ tool computes and displays the root’s deviation from nominal for automatic Pass/Fail results.
When evaluating parts, the CAD Auto-Pass/Fail™ tool can either be point-based or geometry-based.

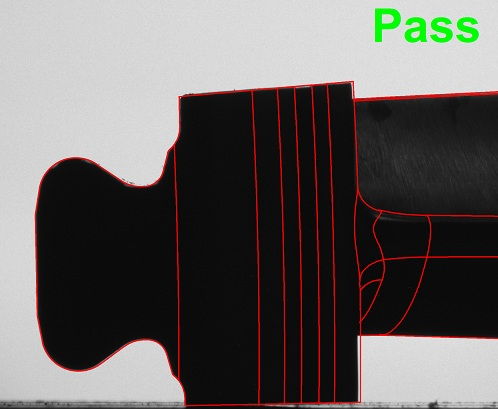

In point-based mode, the fir tree blade root deviation from nominal is evaluated at precise user-specified cross-sections to verify that the part is within tolerance at all of these locations. The geometry-based CAD Auto Pass/Fail™ tool verifies that the fir tree blade root is within tolerance across all geometric entities.
VisionGauge®’s Patented Tooth Checker™ tool is especially powerful for fir tree turbine blade measurement because it is specifically designed to inspect parts with teeth.
This innovative tool automatically locates the crests and roots of the teeth and determines if they are within their tolerance band with very high accuracy. It can also determine all other part characteristics, such as tooth pitch, thread depth, major & minor diameters, and more!
The Tooth Checker™ tool produces a PASS/FAIL result that can be exported and used in the same ways as the CAD Auto-Pass/Fail™ tool.
Turbine blades with fir tree roots are primarily used in industries requiring high-stress, high-temperature, and rotating machinery. Safety, precision, and blade longevity are critical to proper function in these environments. Even small deviations in the blade root profile can affect how the turbine functions, impacting fit, load distribution, and more.
As a result, accurate and reliable turbine blade fir tree root inspection is crucial for the aerospace and power generation industries.
Fir tree root designs have an important role in aerospace applications. They are used in aircraft engines, where turbine blades must withstand extreme environments. The specific geometry of the fir tree root form optimizes the serrated design to better distribute centrifugal load. This reduces stress concentrations and improves fatigue life in turbine engines.
Aircraft engine manufacturers and their suppliers have strict requirements for manufacturing parts to ensure every component will be able to deliver maximum safety and optimal performance. They depend on precise fir tree turbine blade measurement to meet these strict compliance requirements and maintain high-quality standards.
Similar to aircraft engines, a fir-tree root design is often used in power generation. These components work hard under extreme conditions, so they must meet established industry standards to operate efficiently and, more importantly, safely.
While aircraft engines are gas turbines, power generation and energy systems can use both gas and steam turbines, both of which use fir tree root forms.
Parts inspection is imperative in the power and energy industry. VisionGauge® Digital Optical Comparators can aid quality assurance practices by inspecting industrial components with advanced, patented technology.
Interested in aerospace and power generation applications? Read our brief guide for checking turbine blade fir trees.
Many VisionGauge® Digital Optical Comparator users combine the CAD Auto-Align™ and CAD Auto Pass/Fail™ tools to fully automate their inspections.
With access to both of these powerful tools, the process typically looks like this:
Our VisionGauge® Digital Optical Comparator transforms the way you approach turbine blade measurement and inspection.
With numerous benefits that streamline your operations and elevate your manufacturing standards, you’ll find value in:
If you’re ready to transform your turbine blade inspection, reach out today to get started!
Our systems achieve accuracies down to ±0.0001 inches under actual manufacturing conditions. This level of precision helps manufacturers meet the strict demands of fir tree turbine blade inspection in aerospace and power generation environments.
VisionGauge® automatically compares turbine blade fir tree root forms against their CAD data, eliminating the need for cumbersome overlays and ensuring consistent, accurate measurements every time. This improves quality control by reducing operator variability and ensuring each part meets the specification.
VisionGauge® performs turbine blade inspection much faster than traditional methods, allowing you to inspect more blades in less time and significantly boost your production throughput without compromising accuracy.
Yes, VisionGauge® removes subjectivity and human error from your inspections with fully automated systems. Our tools deliver consistent, repeatable outcomes, regardless of the operator.
VisionGauge® automatically gathers and documents measurements, statistics, images, and pass/fail results. This provides detailed insights and traceable quality records to support your manufacturing standards and compliance requirements.
VisionGauge® utilizes proprietary, patented tools such as CAD Auto-Pass/Fail™ and CAD Auto-Align™ to automate inspection workflows fully. This reduces manual intervention, frees operators to focus on other critical tasks, reduces overall labor costs, and improves efficiency.

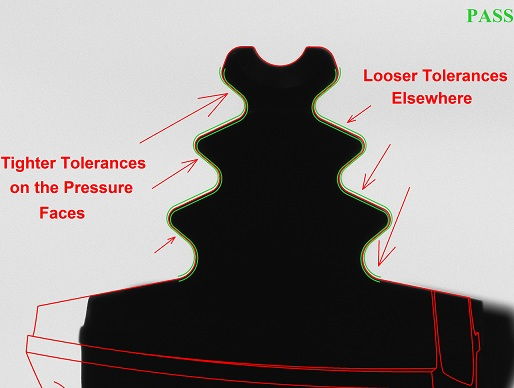

Yes. VisionGauge® allows you to apply uniform or variable tolerance ranges to different sections of turbine blade fir tree root forms. This enables precise adjustments based on specific quality requirements and enhances overall product quality.
VisionGauge® can inspect large or uniquely shaped turbine blade fir tree root forms at high magnification. Its extended field-of-view and depth-of-field capabilities allow for comprehensive analysis without being limited by camera constraints, even for the most complex parts. This ability makes it easier to pinpoint non-compliant areas that manual approaches might otherwise miss.
By delivering consistent, operator-independent measurements, VisionGauge® helps identify where parts deviate from nominal geometry early in the process. This process reduces the risk of defects before they cause delays or failures, saving you time and costs associated with rework or scrapped inventory.
VisionGauge® eliminates tedious overlay alignments and manual comparisons by automating key inspection steps. This automation simplifies operator tasks and makes it easier to perform accurate, repeatable measurements of complex geometries, such as fir tree turbine blade roots.
Fast data capture is a primary benefit of our optical measurement systems. VisionGauge® solutions can quickly measure across thousands of data points in mere seconds, providing a complete picture of the workpiece. This speed makes them ideal for high-volume production environments by allowing manufacturers to inspect more fir tree turbine blade roots in less time while increasing overall throughput.
Thanks to the large variety available, our optical measurement systems are versatile equipment for many production environments. We offer custom engineering to create systems tailored to your unique application needs, including lenses and magnification, working distances, illumination, measurement configurations, workholdings, and much more.
Our systems are compatible with both manual operation and fully automated processing, making them easy to integrate with your existing workflows.
The VisionGauge® Digital Optical Comparator is a comprehensive solution for gas turbine blade inspection and measurement. Our experts can help you configure a system that meets your application needs — whether you are handling gas turbine blade inspection or other high-precision components. Investing in this cutting-edge technology will give you precision, efficiency, and peace of mind.
Contact us today to learn how the VisionGauge® Digital Optical Comparator can transform your inspection workflow and help you maintain consistent, high-quality output on every part.
