VisionGauge® Roll Pin Distance Measurement Tool

VisionGauge® Roll Pin Distance – A New Powerful  Measurement Tool

The VisionGauge® Digital Optical Comparator’s new “Roll Pin Distance” measurement tool allows users to capture measurements over pins and more. There are three options for the Returned Value: Center-to-Center Distance, Maximum Distance, and Minimum Distance. Simply define the Roll Pin Diameter, select the desired returned value, and the measurement is completed after a few clicks in manual mode or completely automatically in a program!

• Eliminates yet another Hard Gage!
• Fast, Easy, and Operator-Independent!
• Demonstrated Accuracy down to ±0.0001″
• Extremely Simple to Set Up!

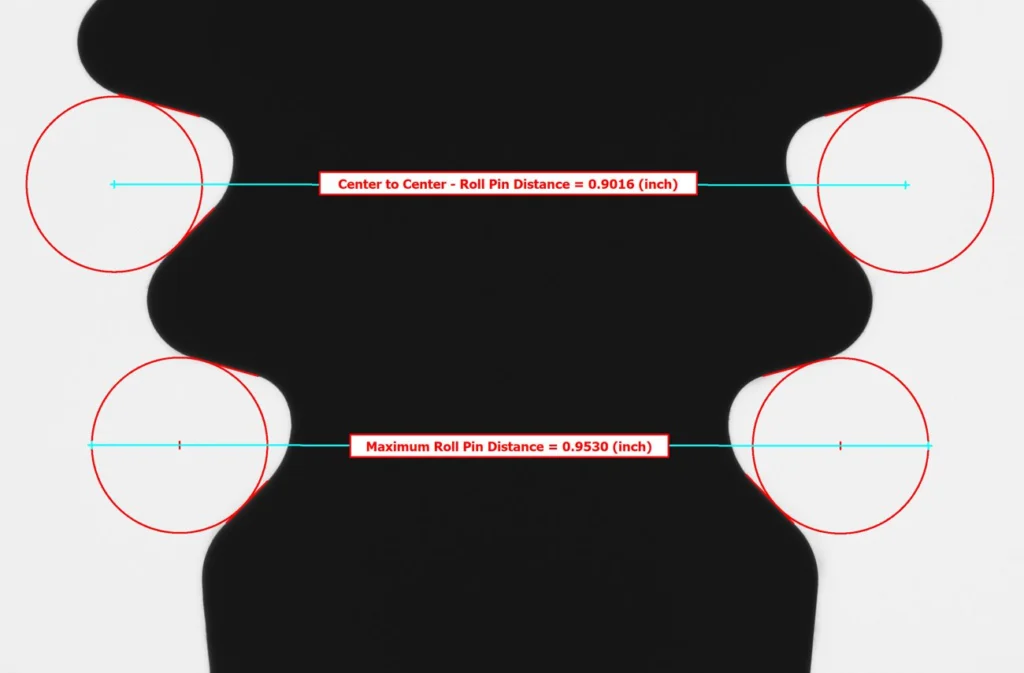

In addition, the Roll Pin Distance measurement tool offers the option to save the Center of the Roll Pins as Datums. As shown below, any type of measurements can then be completed directly using the Center of the Roll Pins!
