Precision is critical in medical implant manufacturing because the components must integrate seamlessly with the human body. Accurate medical device inspection is a vital safeguard against mechanical failure or physiological rejection.
For an implant — such as a femoral stem — to function correctly, its geometric features must adhere to extremely tight tolerances. A taper fit that is slightly off or a screw thread that is incorrectly pitched can cause instability, leading to aseptic loosening, unnecessary bone resorption, or the structural collapse of the implant. As a result, patients with a defective stem or other types of implants will need painful and risky revision surgeries due to one small yet highly impactful defect.
Proper medical device inspection validates that every piece meets the regulatory requirements and bio-mechanical specifications required to guarantee patient safety and long-term clinical success.
One difficulty in verifying these parts lies in the geometric complexity and material properties of modern implants. Many feature organic, non-prismatic shapes that mimic human anatomy, which are notoriously difficult to measure with standard gauges or calipers.
The use of specialized textures, such as porous plasma-sprayed coatings intended to encourage bone ingrowth, creates “noisy” surfaces that can confuse optical sensors or snag physical probes. Meeting all the medical industry’s requirements in a high-volume production environment is yet another significant challenge.
The VisionGauge® Digital Optical Comparator was developed in close collaboration with medical OEMs, to meet the medical industry’s inspection and measurement requirements. It’s fast, accurate, produces operator-independent results, and is designed to be used directly on the shop floor. Furthermore, it has patented software tools that are perfect for medical device verification and validation.
The VisionGauge® Digital Optical Comparator is used by both large & small medical device manufacturers worldwide. It provides solutions and efficiencies for a wide range of applications, including:
Orthopedic implants are common throughout the body, from knees to shoulders. Each implant’s specifications depend on its purpose. Ensuring exact alignment with regulations from organizations like the FDA, medical device inspections using our digital optical comparator systems help manufacturers confirm that implants are free of defects and meet relevant standards.

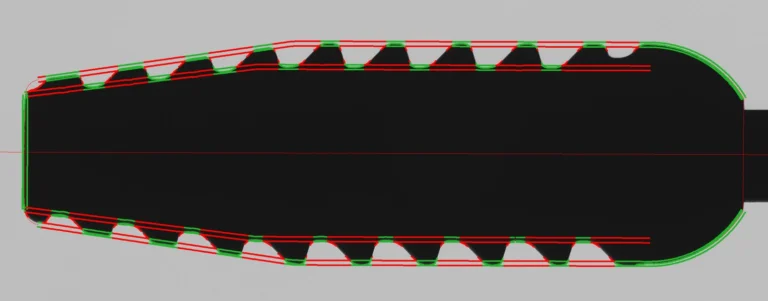

Medical bone screws are instrumental in fixing fractures together for proper healing. The spacing and pitch of each thread are critical, so medical device optical inspections have specialized tools to identify any issues with every implant’s threading.
From total hip replacements to facial reconstruction implants, many medical devices are made with plastic and polymer. These materials allow for the fabrication of complex parts with unique geometries, but they can add glare and reflections that make medical device inspections challenging when using traditional optical comparators.
Like implants, medical rasps and other surgical tools have little room for manufacturing errors. The height, spacing, angle, and bottom radius of each tooth must be within the appropriate tolerance band and match all specified requirements.
The instruments and tools used in medical and surgical procedures are also subject to strict quality standards. To ensure all parts meet specifications, our comparators provide strict design controls so that every part meets precise design requirements and dimensional characteristics.
Stents require precise placement due to their location in the human body. Unbiased stent measurement tools are key to inspecting them quickly and accurately. Our digital optical comparators provide fast, meticulous medical device inspections to ensure every stent is made exactly to specification. Our systems can achieve high-accuracy inspections and non-contact measurements under high magnification conditions, with a resolution of up to 0.1 microns. With fully automated visual inspections, you’ll get precise dimensional measurements specific to stents, as well as color verification and pattern matching to help identify potential defects.
In addition to a wide range of other medical device inspection applications, VisionGauge® digital optical comparators and VisionGauge® OnLine software are capable of measuring part-to-part positions and orientations of injection-molded parts.
Our systems will align each piece perfectly with a master image of your product’s precise schematic. They will then automatically measure all tolerances, including between each component, performing a precise inspection that ensures your parts are within the desired specifications.
Results are then collected and analyzed by our software’s Data Groups, which then present many report generation and exchange/transfer options to streamline collecting complete device history and documentation.
To ensure accurate assembly of medical components, our VisionGauge® OnLine systems improve your verification and measurement processes during production or while in post-production. Our advanced image processing and analysis tools enable automated processing before inspection.
They can also be used to capture and track date-lot codes and board serial number information using the VisionGauge® systems’ Optical Character Recognition (OCR) tools. With high-resolution images, this data can be easily saved and reviewed to confirm important component information.
Additionally, our visual inspection systems include several tools for enhanced medical device measurement and examination:
Our systems can further be customized to fit into any part of your existing production line. They can be programmed to send signals if an inspection finds a device outside the necessary tolerances. Plus, all obtained data can be exported, transferred, or automatically placed into a report.
VISIONx, Inc. provides a range of digital optical comparators in vertical and horizontal configurations to accommodate multiple applications. These systems are ideal for orthopedic parts inspection and medical device inspection, helping manufacturers streamline their product development process while lowering costs and improving product quality.

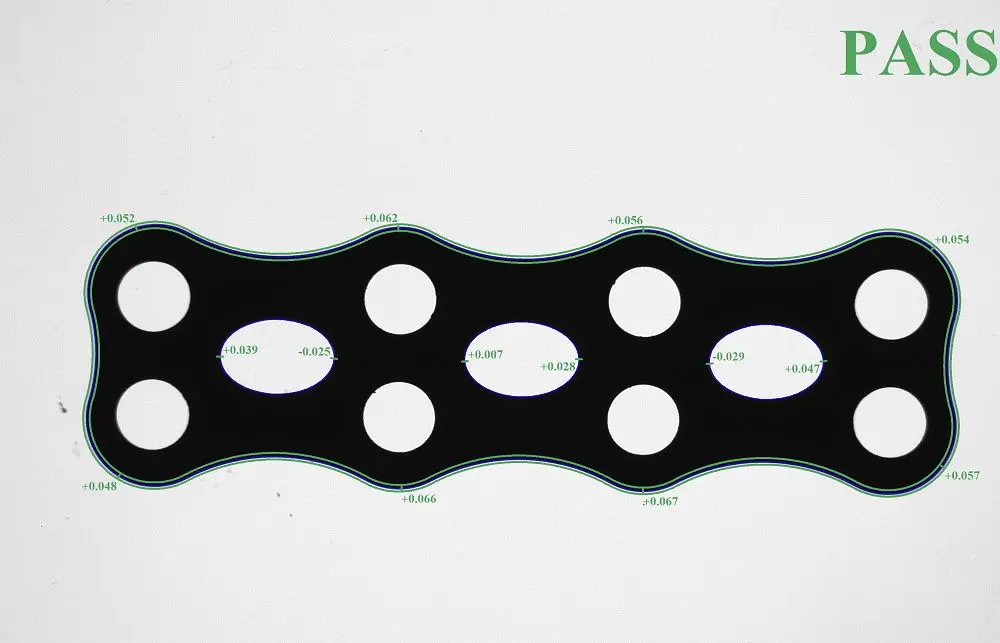

The VisionGauge® Digital Optical Comparator line offers increased accuracy, higher throughput, and a smaller footprint than traditional comparators and other existing technology. VisionGauge® systems compare medical devices and components directly against their CAD data to ensure compliance. These tools issue results in the form of Pass or Fail / Go or No-Go to simplify the inspection process.
In addition to our comparators, VISIONx, Inc. also offers several systems that ensure precision production and accurate assembly of medical device parts. These solutions include:
Manufacturers can also use the VisionGauge® Tooth Checker™ for medical rasps, bone screws, and other devices and components with teeth or threads. The tool automatically locates crests, roots, or both and determines whether they are in tolerance and safe for use. Additional screw thread measurement tools can reliably and quickly measure and report screw dimensions.
VisionGauge® system validation is straightforward, ensuring all industry and governing body requirements and standards are met. VisionGauge® medical equipment inspection systems are also fully capable of collecting complete electronic documentation for device history and long-term data integrity.
The 500 Series Digital Optical Comparator sets the standard for optical quality control equipment everywhere. This machine can handle almost any demand thanks to its high efficiency, user-friendly design, and precision optics. Discover how it supports precise medical device optical inspections for improved operational consistency and regulatory compliance.
Are you interested in streamlining your inspection process with VisionGauge® Digital Optical Comparators and optical measuring systems? As your vision inspection system manufacturer, we’re available to provide support at any time, so browse our selection of products or contact us online today.
