Non-contact Metrology and Optical Measuring Systems

Our Vision Measurement Systems

In addition to our digital optical comparator, VISIONx, Inc. has worked with companies across various industries to create other non-contact metrology, visual inspection, and optical measuring systems. These vision measurement systems may include specialized configurations to meet specific requirements and solve challenging applications. Large-travel motorized systems for heavy parts, manual stages, multi-camera systems, turnkey systems, and more are available to meet our clients' inspection and measurement requirements.

Benefits of an Optical Measurement System

Our vision measuring systems drive value for various production and shop floors.


Fast data capture is a primary benefit of investing in an optical measuring device. Our solutions can quickly measure across thousands of data points in mere seconds for a complete workpiece picture. That speed makes them ideal for high-volume production and increased throughput.


Thanks to the large variety available, our optical measurement systems are versatile equipment for many production environments. We offer custom engineering to create systems tailored to your unique application needs. Our customizable options include lenses and magnification, working distances, illumination, measurements, workholdings, and much more.

Plus, our systems are compatible with both manual operation and fully independent, automated processing to align with your workflows.


Our systems and software are built for high-accuracy inspection. Unlike manual processes, our vision measurement systems are incredibly accurate and consistent. That precision ensures the same results regardless of the operator performing the task and style differences. Coupled with their high resolution and point density, you get data you can have confidence in for any workpiece.


We've engineered our systems to withstand the rigors of a rugged production environment. Each features high-quality construction with sturdy materials and first-rate components to help ensure long life spans.


Our vision measuring systems include advanced technology that boosts accuracy and efficiency, from sub-pixel accurate measurements and proprietary CAD overlay comparisons to automation modules.

These systems also come with our proprietary VisionGauge® software for completely custom configurations and effective quality control. The tools are user-friendly and feature intuitive operation, ensuring even beginners can quickly and correctly capture the data they need.

Plus, our technology empowers time savings. For example, eliminate overlays since our systems seamlessly integrate with your existing CAD information. Our patented CAD Auto-Align feature automatically aligns your CAD file to the part being inspections. Then our patented CAD Auto-Pass/Fail functionality automatically computes deviations in real time and compares it to accepted tolerances to generate precise results, including a final Pass/Fail or Go/No-Go.

VisionGauge® Software Packages

All VISIONx, Inc. systems come complete with the VisionGauge® or VisionGauge® OnLine software packages. The software is easy to use for operators and can be completely automated by running pre-programmed routines for particular parts. The software contains dozens of powerful tools and features required in a vision measuring system, such as:

  • Simple or complex measurements
  • Image processing
  • Motorized stage control
  • Illumination control
  • Sub-pixel edge detection
  • Blob analysis (Counting and Sizing)
  • Pattern matching and registration
  • Color analysis
  • Optical character recognition and optical character verification (OCR/OCV)
  • Image overlays and comparison to tolerances
  • Reporting and DDE transfer of results
  • Support for digital I/O's
  • Many other features available!

Systems To Solve Your Applications

Below are some of the categories of systems we have provided to customers since our beginnings across a wide variety of industries requiring non-contact metrology, inspection, and optical measurement systems. These vision measuring systems are still supported today and are still in use to solve their original applications — even tackling new applications. Read more about the various machine vision applications our systems have been solving. More information about our fleet of VisionGauge® Digital Optical Comparators can be found on the main section of our site.

Optical Character Recognition & Verification Systems (OCR / OCV Systems)

Optical character recognition and verification system

VisionGauge® OnLine Optical Character Recognition Systems / Optical Character Verification Systems for industrial applications are designed to automatically locate, read, and verify text.

High-Accuracy, High-Speed Automated Optical Inspection Systems (AOI Systems)

High-accuracy, high-speed AOI systems

VisionGauge® Online High-Speed Automated Optical Inspection Systems deliver high-throughput and high-resolution inspection for applications, including automated defect detection and high-accuracy measurement.

High-Accuracy AOI Systems (Automated Optical Inspection Systems)

Automated Optical Inspection (AOI) system

VisionGauge® High-Accuracy AOI Systems are fully-automated, full-color 3D imaging and inspection systems capable of high-accuracy measurements with customizable optics and stage configurations.

Cartesian Measurement and Vision Inspection Systems

Full-Gantry high-power VisionGauge cartesian system

VisionGauge® Cartesian Measurement and Vision Inspection Systems offer fast, programmable motion with accurate positioning and long travels - available with open or closed-frame configurations

High-Accuracy Field-Of-View Inspection & Measurement Systems

FOV inspection system with detented zoom lens

VisionGauge® High Accuracy Field-Of-View Inspection and Measurement Systems are available with either turret-based microscope type optics or detented zoom optics with a long working distance to provide ample clearance between the part and the lens.

High Accuracy VisionGauge® 3D Measurement Systems

VisionGauge® High Accuracy 3D Inspection & Measurement Systems

3D automated stage-based measurement systems with VisionGauge®'s built-in auto-focus, sub-pixel edge-detection, and a wide range of image analysis and measurement tools.

Multi-Camera / Multi-View Vision Systems

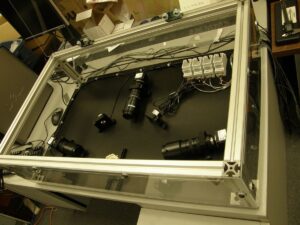

Multi-camera vision system

VisionGauge® Online multi-camera vision systems allow the user to create inspection programs that can switch quickly between cameras and process numerous images on-the-fly.

High-Resolution, Field-of-View Inspection and Measurement Systems

Wide Field-of-View Optical Measurement System

VisionGauge® High-Resolution, Field-of-View Measurement Systems are highly-customizable and suitable for applications requiring high-accuracy measurement inspection and documentation of parts measuring a few inches.

Laser Profiling Systems

Laser Profile Height Measurement

VisionGauge® OnLine LASER Profiling Systems are capable of fast and accurate, fully automated thickness/height measurements.

High-Accuracy Automated Cable Cross-Section Measurement Systems for the Cable & Wire Industry

High-resolution cable cross-section inspection systems are designed to carry out high-accuracy automatic measurements of multi-strand cables with VisionGauge® OnLine.

Portable / Remote Visual Inspection Systems

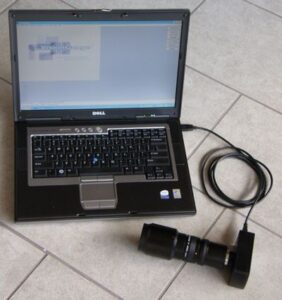

Portable Vision Inspection system

Laptop-based, mobile visual inspection and video measuring systems with VisionGauge® or VisionGauge® OnLine software.

VisionGauge® / Smart Camera System bundles

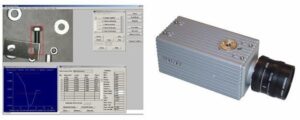

VisionGauge Smart Camera bundles

VisionGauge® Smart Camera Bundles are complete, all-in-one solutions for both imaging and machine vision applications perfectly suited to a wide range of quality control and inspection applications.

Contact Us for Optical Measurement Systems

Improve your production floor's accuracy and efficiency with a VisionGauge® optical measuring device. We're a market-leading provider of precision systems for businesses in many industries. Browse our solutions and request a quote, or contact us for ordering advice.



Machine Vision Products Application Bulletins:
