Rotary Stages / Rotary Axes VisionGauge® Digital Optical Comparators

VisionGauge® Digital Optical Comparators are available with supplementary rotary axes. Our rotary stages are extremely flat and of the highest quality. They produce very repeatable movement and rotate the part about the stage's true center.

Rotary stages can be mounted in different planes to accommodate the specific requirements of your application.

Multiple rotary stages can also be used (to provide "Pan & Tilt" capability, for example).

VisionGauge® Digital Optical Comparator rotary stage/axis
VisionGauge® Digital Optical Comparator rotary stage/axis
An aircraft engine impeller mounted on a VisionGauge® Digital Optical Comparator rotary stage/axis
An aircraft engine impeller mounted on a VisionGauge® Digital Optical Comparator rotary stage/axis
Rotary stage mounted normal to the optical axis on VisionGauge® Digital Optical Comparator
Rotary stage mounted normal to the optical axis
Rotary stage mounted with the axis of rotation aligned horizontally with a 5C Collet chuck on VisionGauge® Digital Optical Comparator
Rotary stage mounted with the axis of rotation aligned horizontally (and with a custom fixture that includes a 5C Collet chuck)

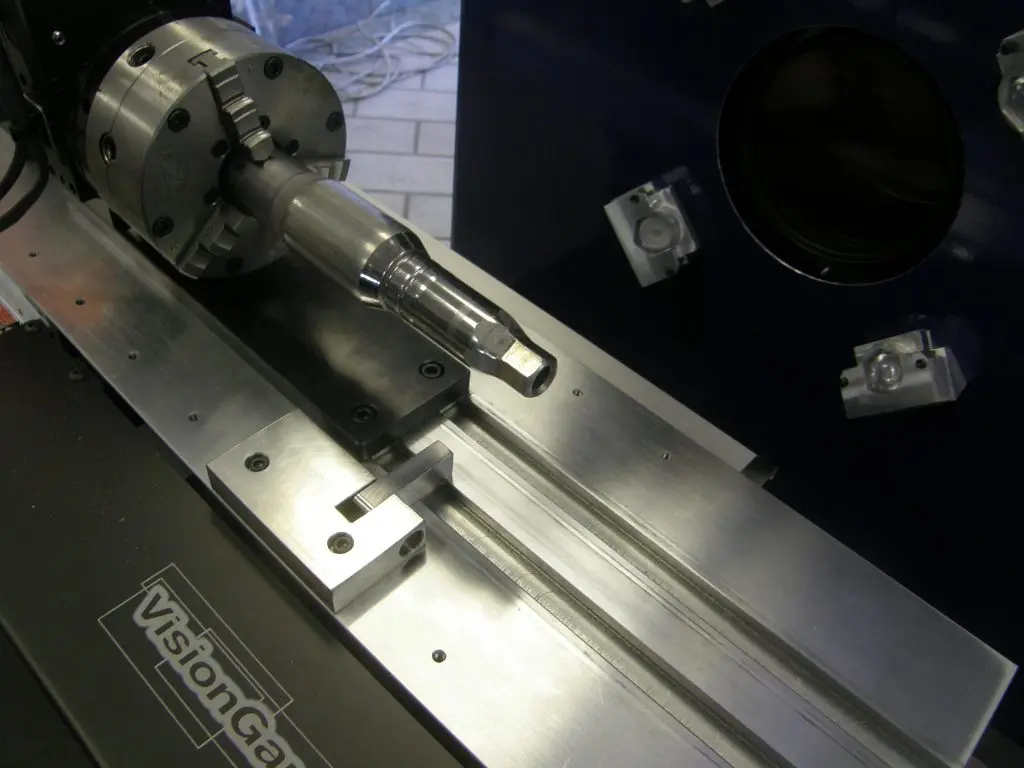

Rotary stage and workholding for turnkey runout measurement application
Rotary stage and workholding for turnkey runout measurement application

The above video shows a VisionGauge® tool for Automatic Part Alignment that is often used in conjunction with rotary stages.

Overall Outline of Rotary Stage included in "VGDOC-30-RS" (different dimensions and configurations are available) on VisionGauge® Digital Optical Comparator
Overall Outline of Rotary Stage included in "VGDOC-30-RS" (different dimensions and configurations are available)

Please contact us for more information including a detailed spec sheet, a "Frequently Asked Questions" document, pricing, etc...
