Rotary Stages & Axes for Enhanced Measurement

VisionGauge® Digital Optical Comparators are available with supplementary rotary axes. Our rotary stages are extremely flat and of the highest quality. They produce very repeatable movement and rotate the part about the stage’s true center.

Rotary stages can be mounted in different planes to accommodate the specific requirements of your application.

Multiple rotary stages can also be used (to provide “Pan & Tilt” capability, for example).

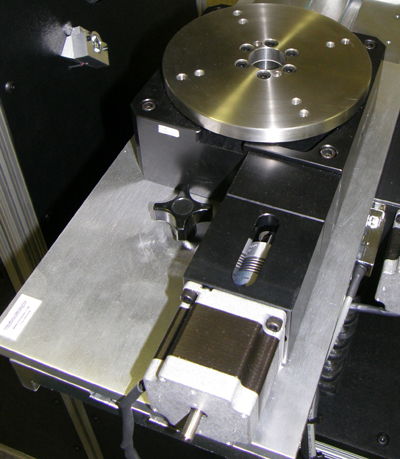

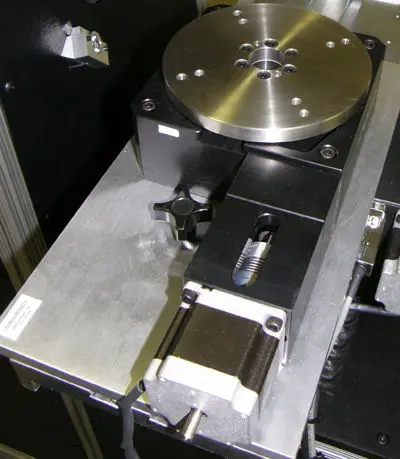

VisionGauge® Digital Optical Comparator rotary stage/axis

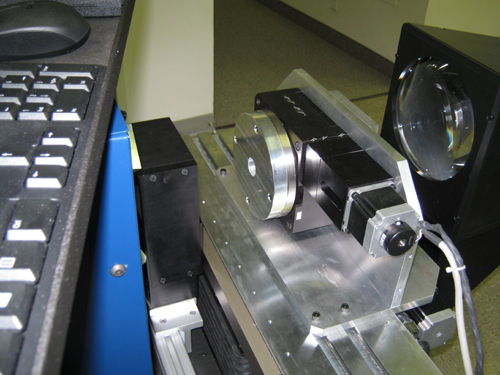

Rotary stage mounted normal to the optical axis

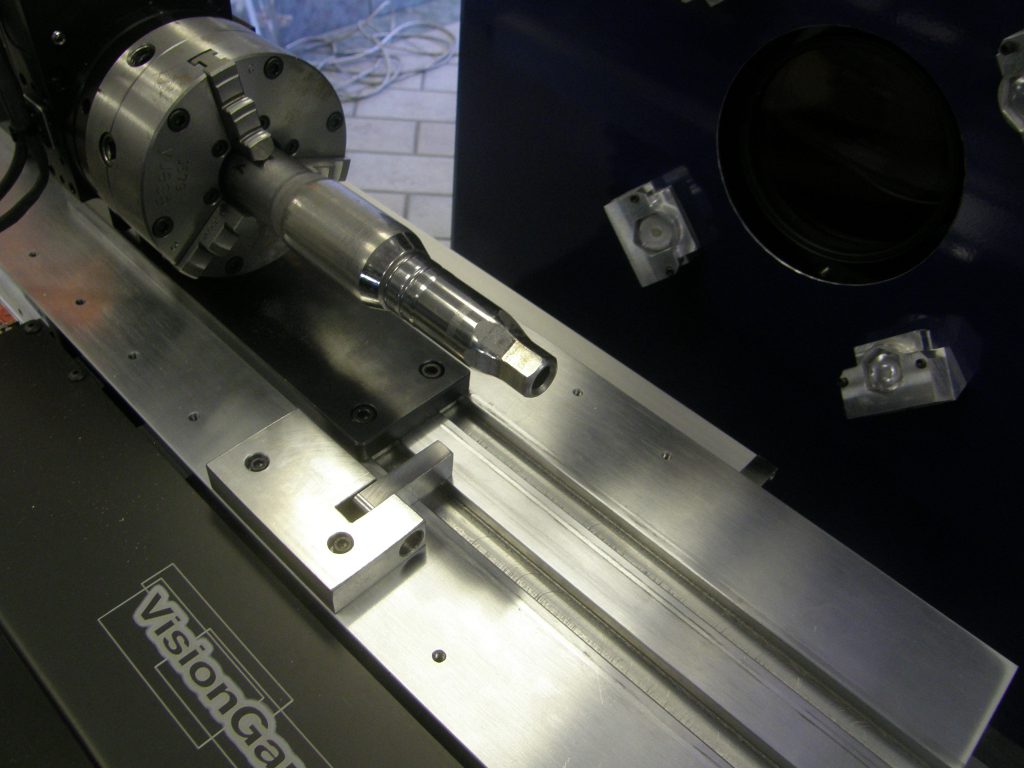

Rotary stage and workholding for turnkey runout measurement application

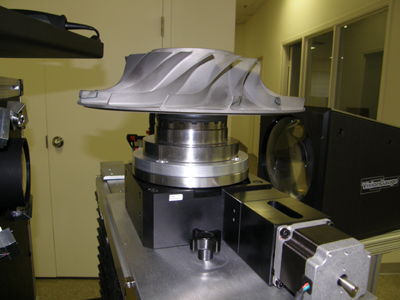

An aircraft engine impeller mounted on a VisionGauge® Digital Optical Comparator rotary stage/axis

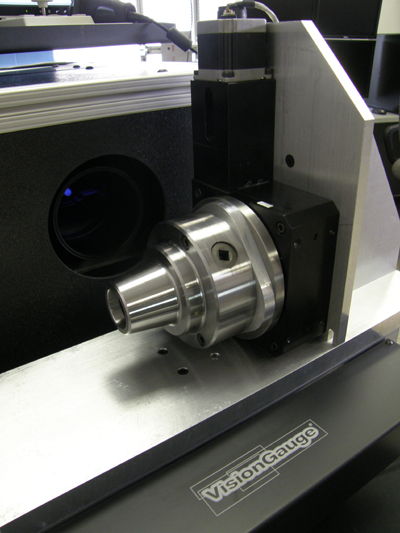

Rotary stage mounted with the axis of rotation aligned horizontally (and with a custom fixture that includes a 5C Collet chuck)
