Cartesian Measurement and Vision Inspection Systems

VisionGauge Cartesian Measurement and Inspection Systems are designed for fast and accurate positioning followed by vision inspection and high-accuracy field-of-view measurements.

These systems feature fully programmable 3D motion for fast and repeatable motion over long distances, making them ideal for dynamic inspection applications with high duty-cycles. Our Cartesian Inspection systems are used in a wide range of industrial production and quality control applications. They are also appropriate for part scanning, using VisionGauge's® "scan mode" over a user-defined area.

Full-Gantry high-power VisionGauge cartesian system

Our VisionGauge Cartesian Measurement and Vision Inspection Systems are built around the powerful and easy-to-use VisionGauge® machine vision software package, which means that they have a simple and intuitive interface and include a wide range of fully-integrated tools for imaging, image analysis, statistics, databasing, reporting, and much, much more!

The Cartesian measurement system can be controlled manually through an external (3-axis, 3-speed) joystick, as well as through the "on-screen" joystick. Automated inspection is also easy to program with "step-and-repeat" operation using VisionGauge's® intuitive "teach mode". These automated programs can be saved to disk and reloaded by operators on-demand for fast execution.

These systems are offered in both half-gantry and full gantry configurations: Half-gantry (i.e. "bridge") configurations reduce space requirements, while full gantry configurations are recommended for ultra-long travels and heavy samples. Both open and closed-frame configurations are available, in addition to multiple mounting and support configurations for your part.

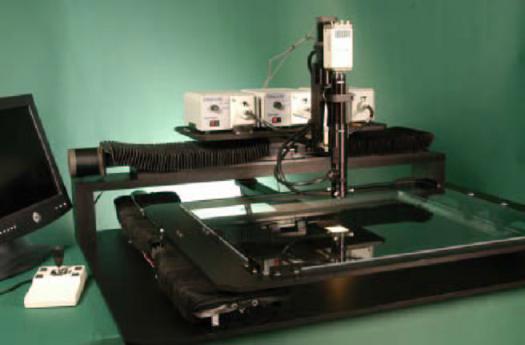

Open-frame, half-gantry cartesian measurement system

High-resolution zoom optics are available in both manual and motorized (i.e. "power zoom") configurations. Other "custom" optical configurations are also available. These systems benefit from a variety of programmable computer-controlled illumination options for repeatable lighting and consistent measurement results. Our application experts can customize and configure our vision inspection systems to meet your specific requirements.
