Super-Extended Travel Configurations
The 300 Series VisionGauge® Digital Optical Comparator Field-of-View System is a cost-effective device designed for inspecting smaller parts regardless of orientation.
High-accuracy inspection of large parts supporting up to 300 pounds over 60″ of travel

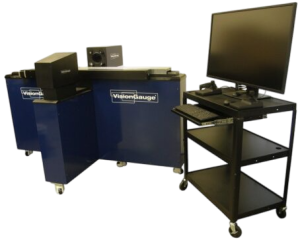

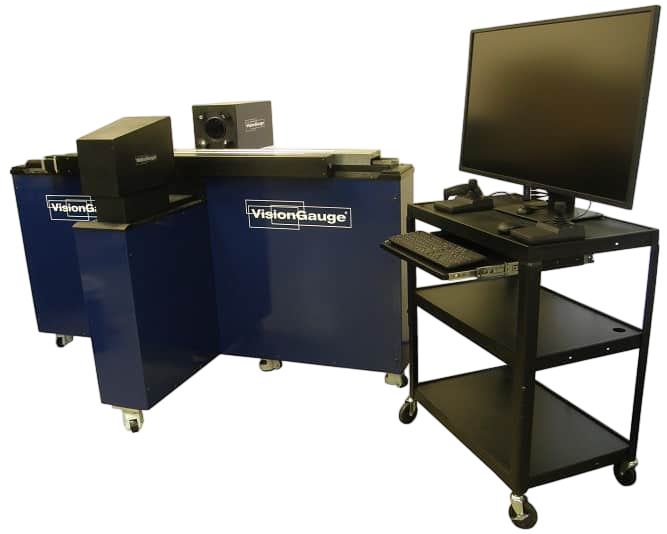

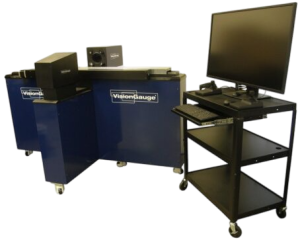

The Super-Extended Travel Configuration 500 Series VisionGauge® Digital Optical Comparator is a precision system designed specifically to inspect and measure big and heavy parts. They have up to 60” of travel and support loads of up to 300 lbs!
Parts are set on the system’s X-Axis stage, which is built using precision rails and is set on a floor-mounted granite base. The camera is mounted on the Z-axis and the entire assembly, along with the front and back illumination, move up and down on the Y-Axis. In this way, the Y and Z axes are completely disconnected from the rugged granite-base-mounted X-axis that supports all of the part’s weight. The axes have 0.25µm resolution encoders for high-accuracy positional feedback.
This innovative configuration is designed to provide optimal rigidity and eliminate any mechanical deflections. Everything is optimized to allow the system to produce very accurate measurements of long and heavy parts.
The Super-Extended Travel Configuration 500 Series VisionGauge® Digital Optical Comparator is a precision system designed specifically to inspect and measure big and heavy parts. They have up to 60” of travel and support loads of up to 300 lbs!
Parts are set on the system’s X-Axis stage, which is built using precision rails and is set on a floor-mounted granite base. The camera is mounted on the Z-axis and the entire assembly, along with the front and back illumination, move up and down on the Y-Axis. In this way, the Y and Z axes are completely disconnected from the rugged granite-base-mounted X-axis that supports all of the part’s weight. The axes have 0.25µm resolution encoders for high-accuracy positional feedback.
This innovative configuration is designed to provide optimal rigidity and eliminate any mechanical deflections. Everything is optimized to allow the system to produce very accurate measurements of long and heavy parts.
The VisionGauge® Digital Optical Comparator 500 Series Super-Extended-Travel Configuration is designed to inspect large and heavy parts with performance, reliability, and high-accuracy in mind.
The system provides all of the advantages of the 500 Series VisionGauge® Digital Optical Comparator and includes additional benefits that make it stand out from the competition:

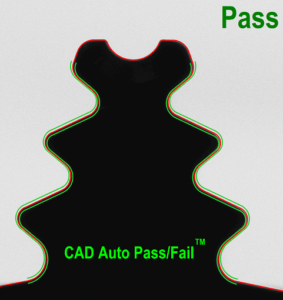

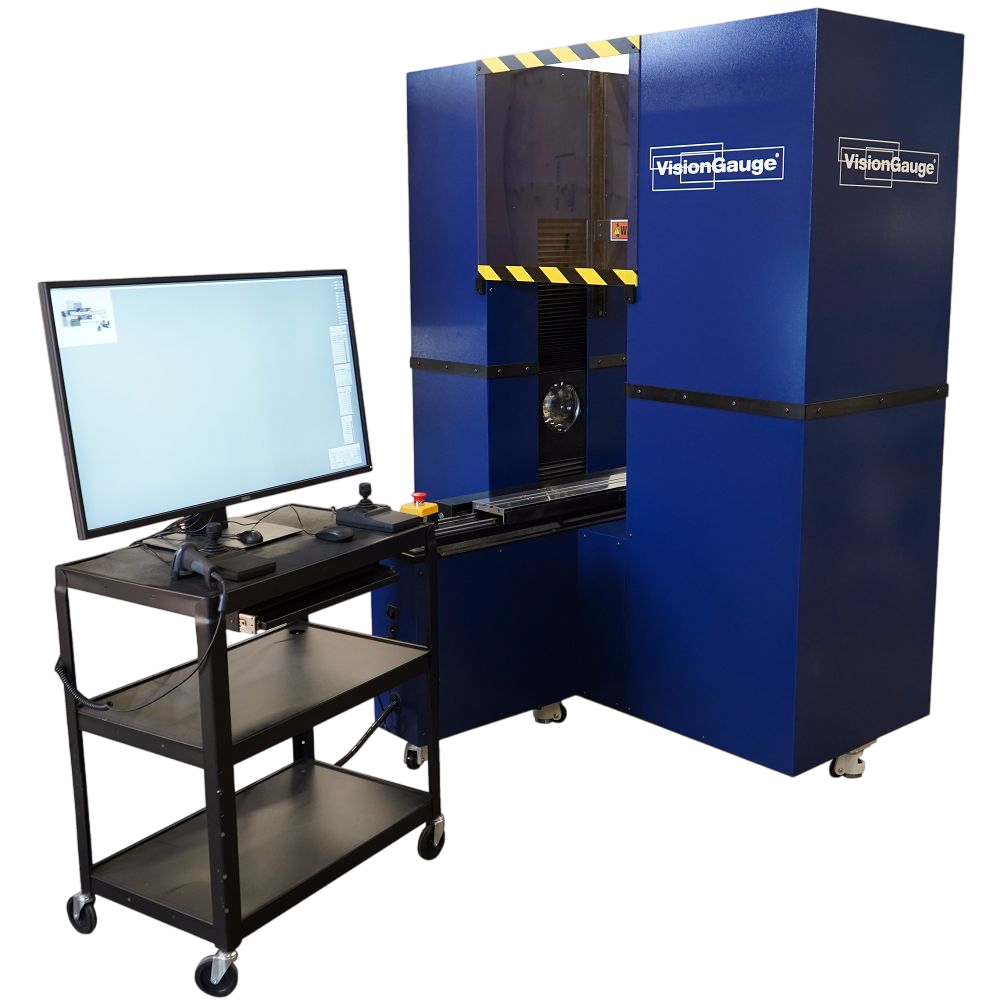

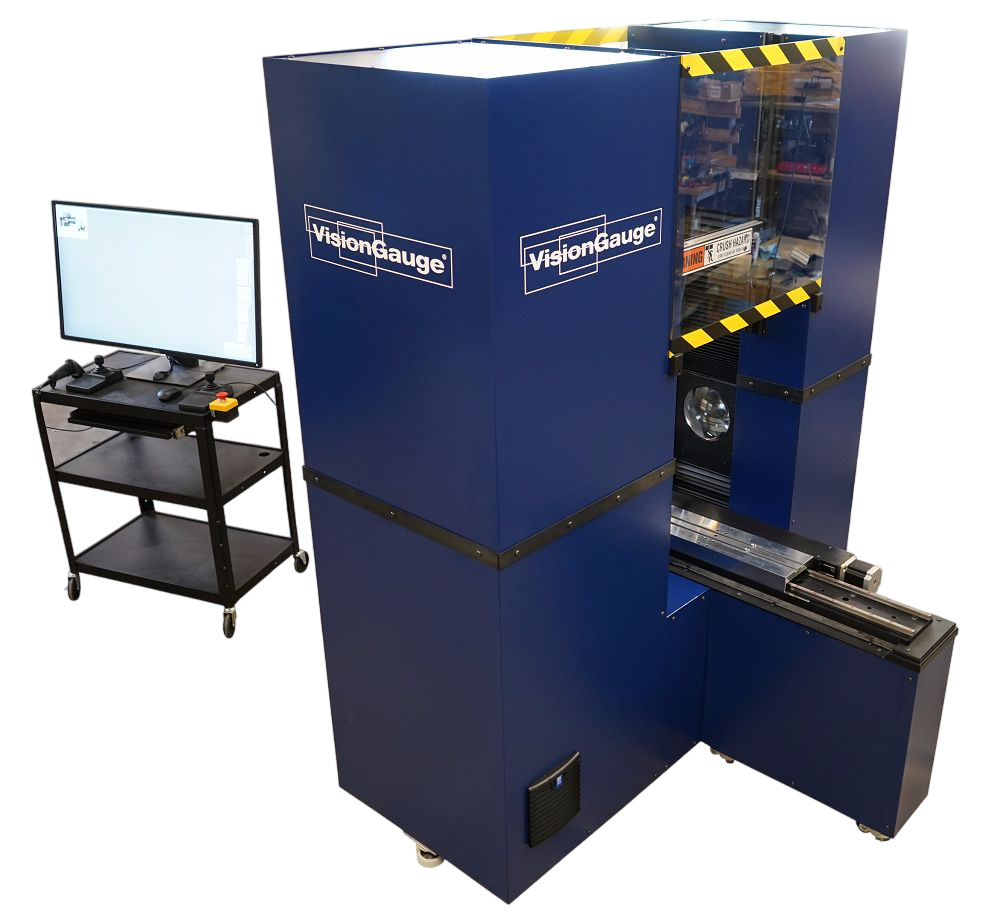

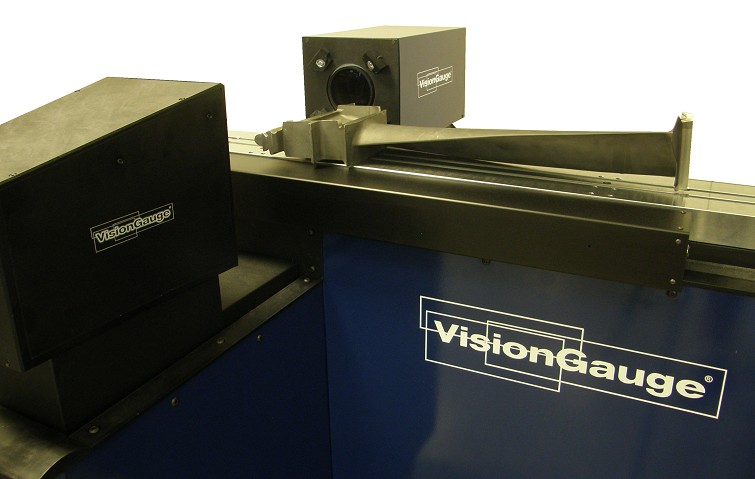

The system is powerful and widely-applicable – capable of solving a vast number of applications across many industries. In particular, the Industrial Gas Turbine (IGT) / Power Generation industry greatly benefits from the use of this system for inspection of fir trees / root forms on buckets. We can also design and build oversized systems to meet unusual or one-of-a-kind requirements.
Contact us with your requirements for more information on how the VisionGauge® Digital Optical Comparator 500 Series Super-Extended-Travel Configurations are suited to solve your application.
