VisionGauge® Comparators: Superior Illumination for Unmatched Clarity

VisionGauge® Digital Optical Comparators are available with transmitted (i.e. back) and / or reflected (i.e. front) illumination.

The VisionGauge® Digital Optical Comparators’ advanced, high-quality illumination modules produce outstanding image clarity even on surfaces and materials that have historically been considered hard to work with (e.g. reflective materials, plastics, etc…) The illumination intensity is very uniform across the entire field-of-view.

transmitted-illumination

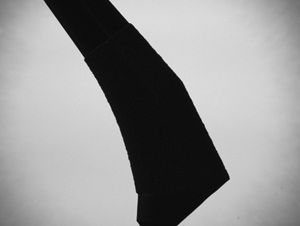

Image of a part using traditional transmitted (i.e. back) illumination. This produces the maximum edge / profile sharpness
reflected-illumination

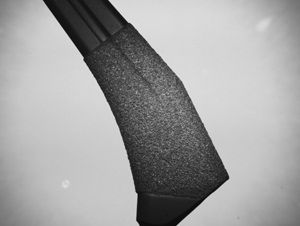

Image of the same part using both transmitted (i.e. back) and reflected (i.e. front) illumination. In this case we can also inspect the surface of the part.

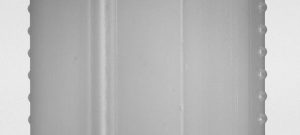

Crisp and Clear image of plastic part (with no glare)

LED Illumination for Stable and Repeatable Results

All illumination is LED-based for very stable and repeatable illumination conditions over a very long life (no more bulbs to replace!). Furthermore, the illumination is programmable and computer-controlled, which ensures repeatable results.

All of the illumination is controlled through a single simple and intuitive software interface!

Highlighting Features with Advanced Illumination Techniques

Different types of illumination, to make different features and defects stand out, are available. For example, our co-axial diffuse illumination is especially designed to produce uniform, shadow- and glare-free illumination. It is mounted on a “swing arm” to allow the operator to easily put it in position and retract it when it is not needed. And – again: it uses the latest LED technology and is computer-controlled by the system’s software. Also, our octant-based reflected illumination module projects off-axis reflected illumination from 8 different sectors resulting in overall illumination that is extremely uniform across the system’s entire field-of-view, with no “hot spot”

coax-illumination-1-1

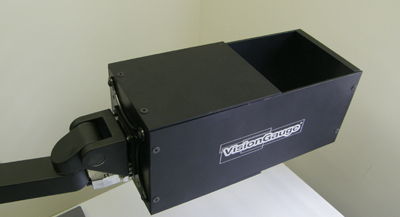

Adapted diffuse co-axial illumination module.
octant-illumination-1536x1023-2

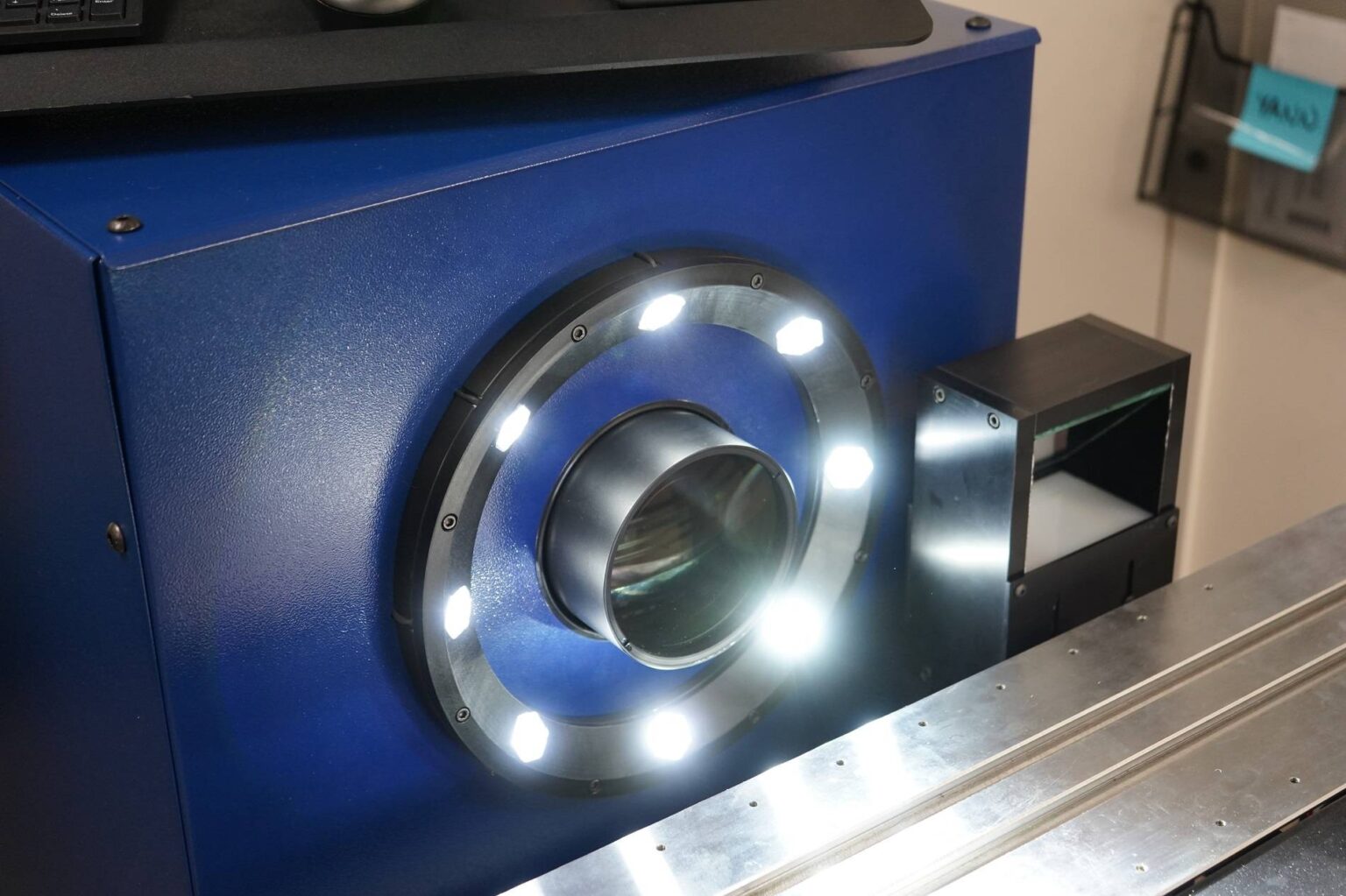

The octant-based illumination produces extremely uniform off-axis illumination to completely remove shadows even on parts with complex and unusual geometry.

The following images show the effect of the ” VGDOC-30-COAXRI ” light source on a reflective / shiny surface (in this case: the touch pad of a BlackBerry).

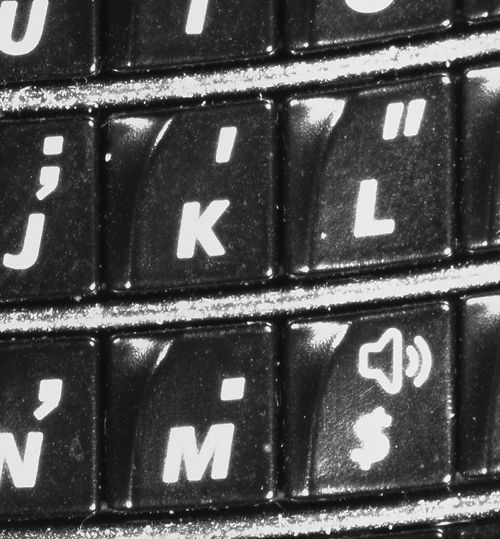

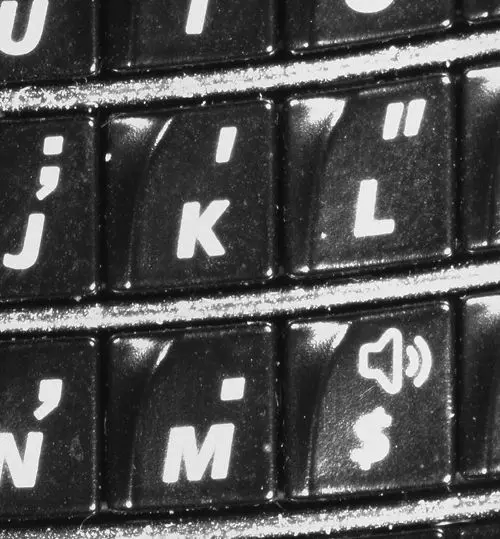

standardreflected
Using standard reflected illumination
Tibial_Plate_10X_Regular_Illumination

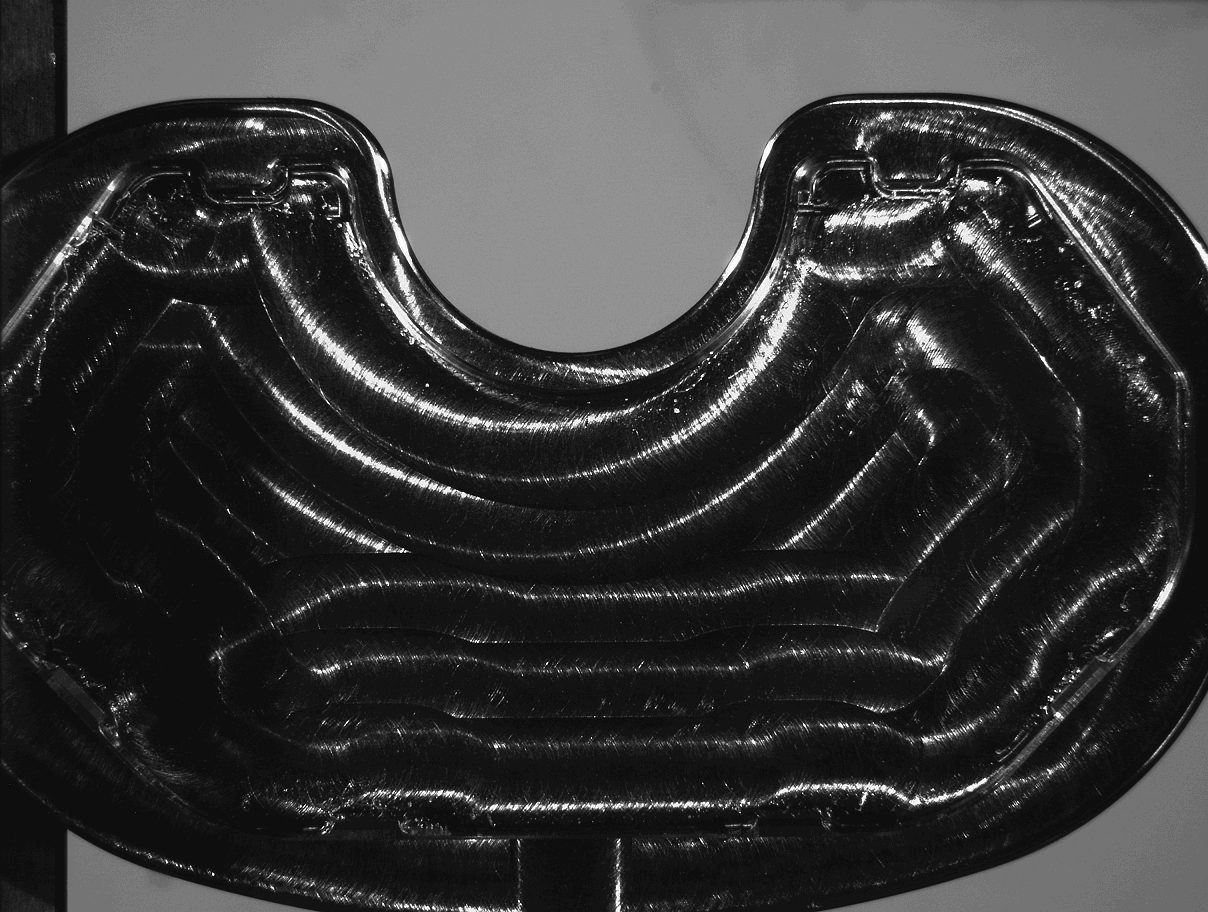

Orthopedic tibial plate implant using standard reflected illumination
Tibial_Plate_50X_Coax-1024x773-1

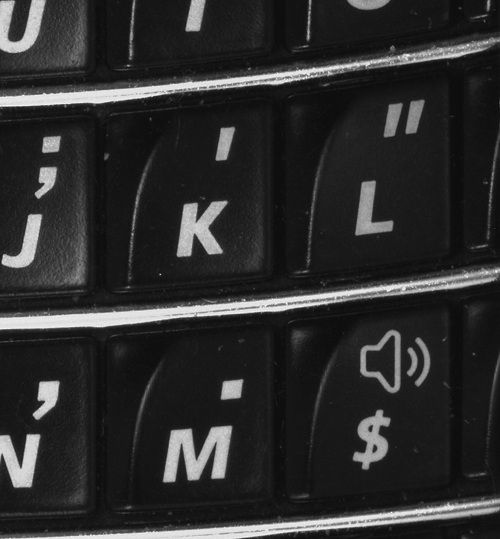

coax

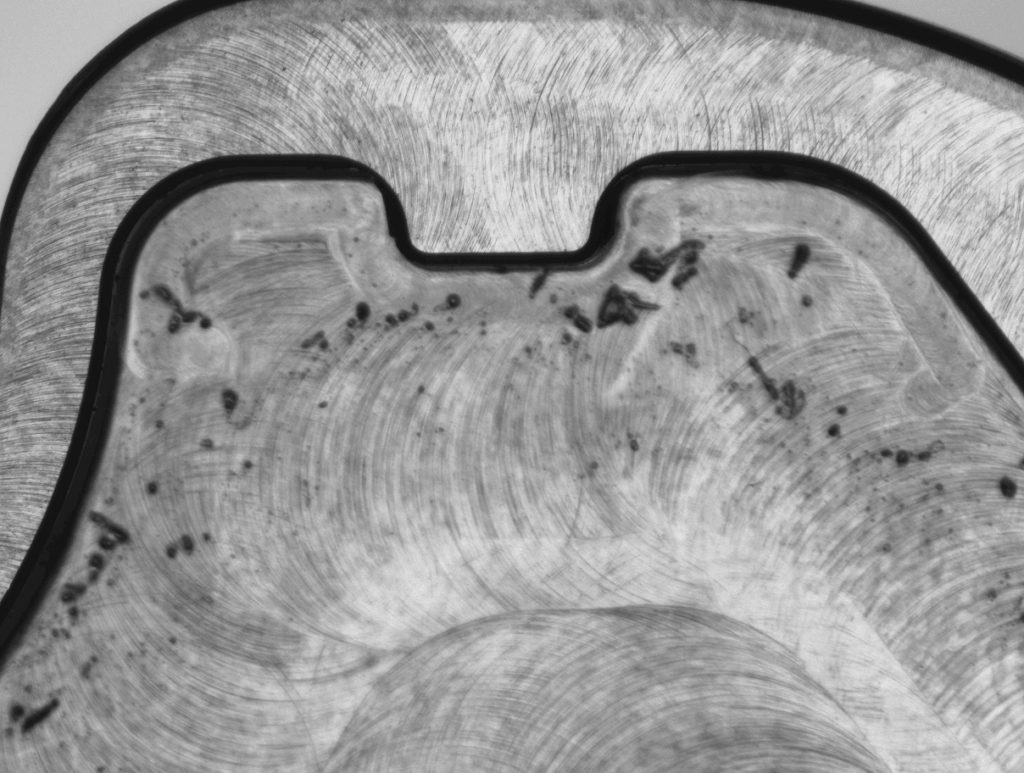

Using the “VGDOC-30-COAXRI” illumination module
Tibial_Plate_10X_Coax

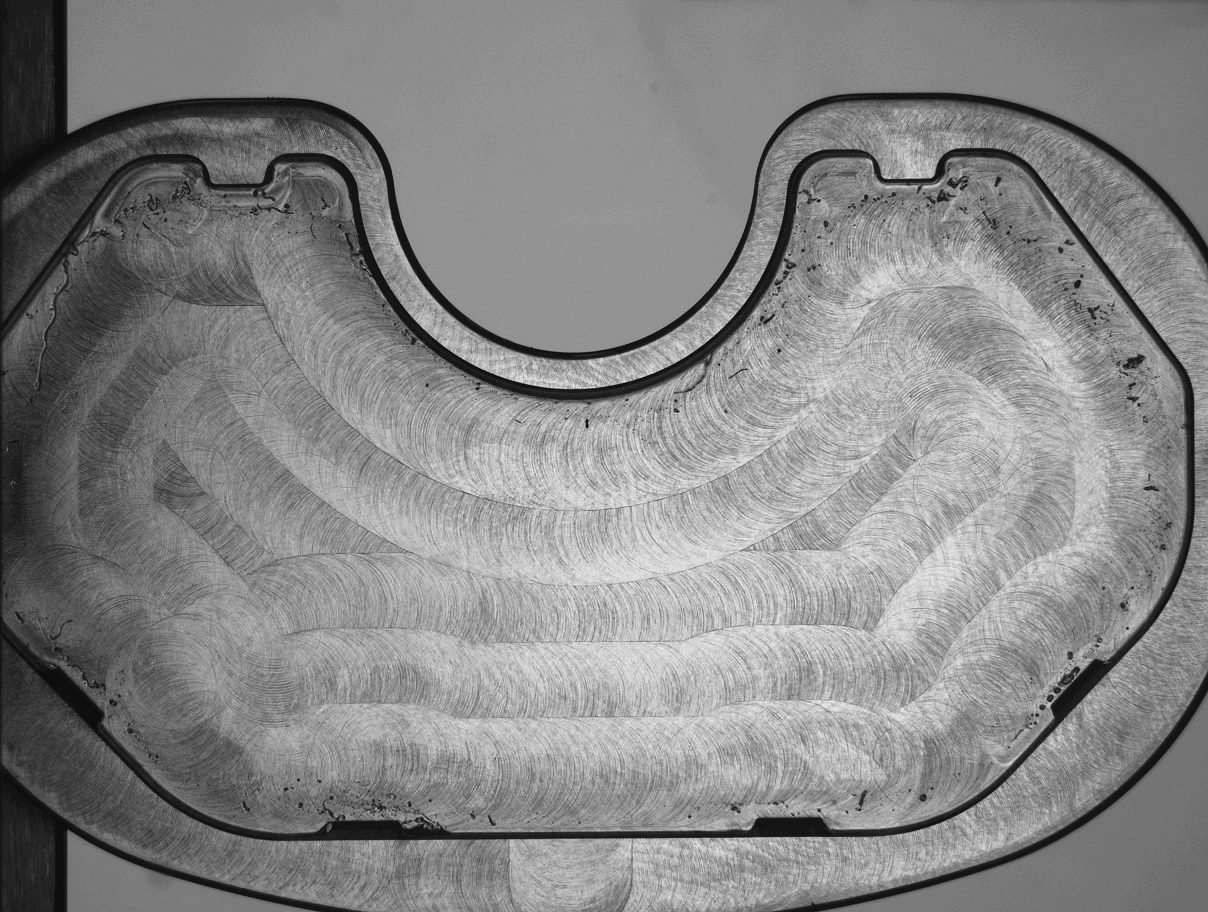

Orthopedic tibial plate implant using the “VGDOC-30-COAXRI” illumination module



Learn more about how the VisionGauge® Digital Optical Comparator overcomes the limitations of traditional optical comparators when inspecting medical plastic/polymer implants.
