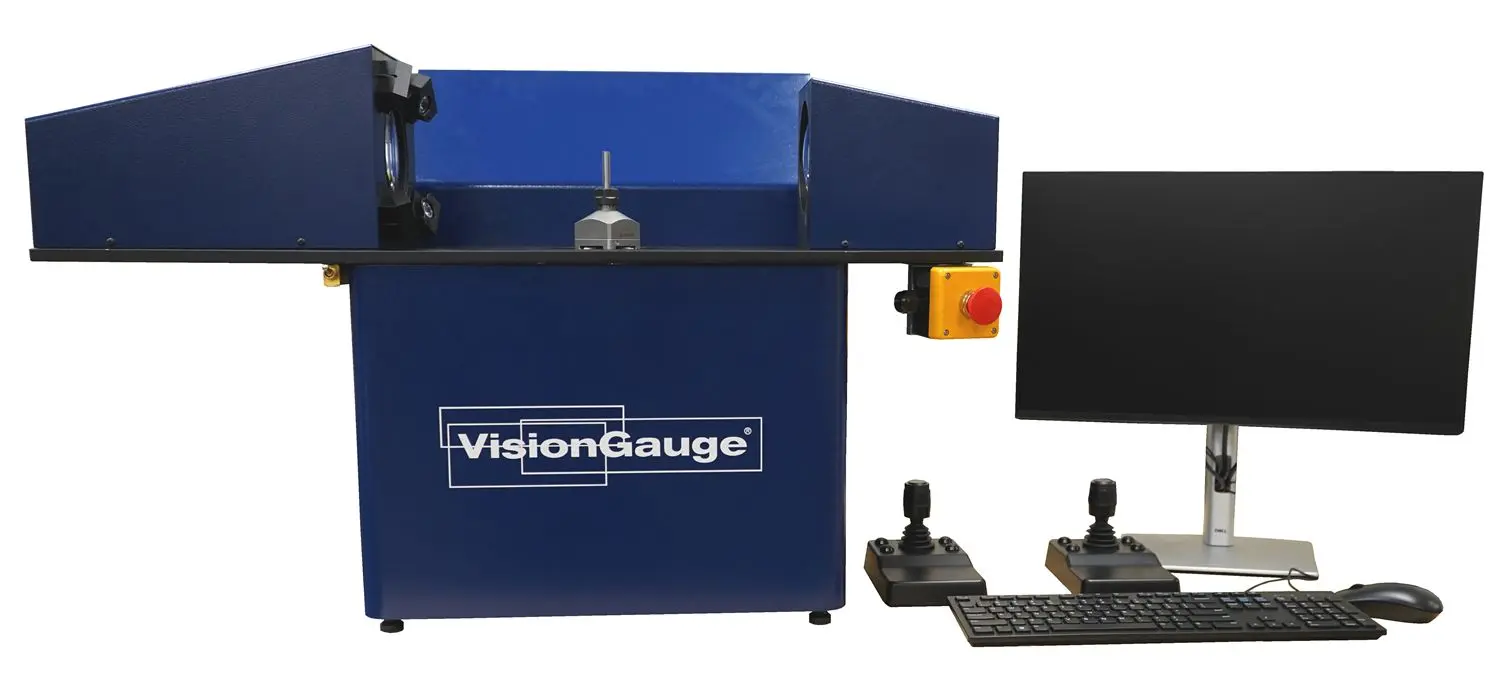

600 SERIES
The 600 Series VisionGauge® Digital Optical Comparators are designed to check turned and rotationally symmetrical parts.
The 600 Series VisionGauge® inspection and measurement system is designed first and foremost to inspect and measure turned and rotationally symmetrical parts, such as:

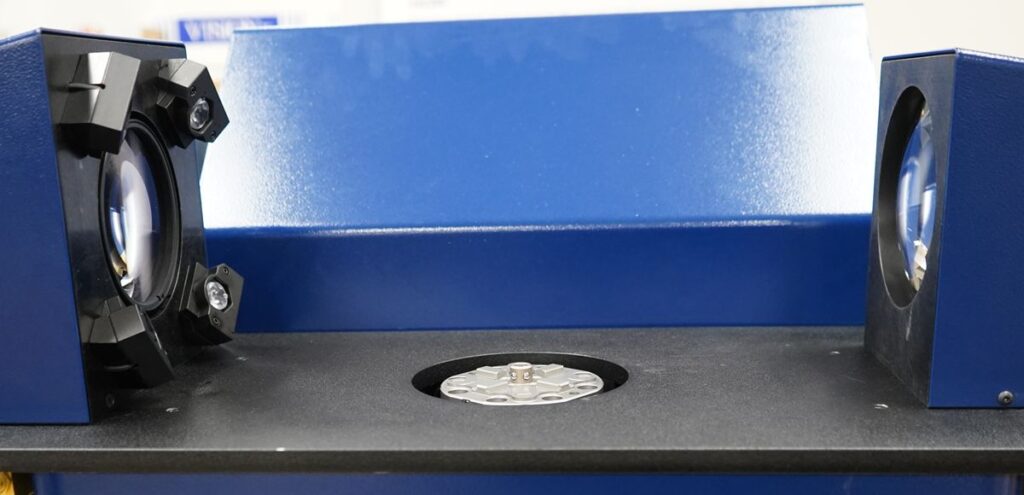

On the 600 Series VisionGauge® system, the part is mounted vertically and the system has two motorized encoded axes: one for part rotation and another for vertical movement (i.e. to move up and down the length of the part).
The system is used across a wide range of industries, including:
It has ultra-bright all-LED programmable and computer-controlled illumination, both transmitted (i.e. back illumination) to verify the part’s outline, and reflected (i.e. front illumination) to inspect and measure surface features.
It has a very high-resolution optical system, with a large depth-of-field and a long working distance and produces an optical accuracy better than +/-0.00015″ (i.e. 4 μm). It produces very crisp and clear, high-contrast, high-resolution images.
The 600 Series system has all of VisionGauge®’s advanced software capabilities, including:

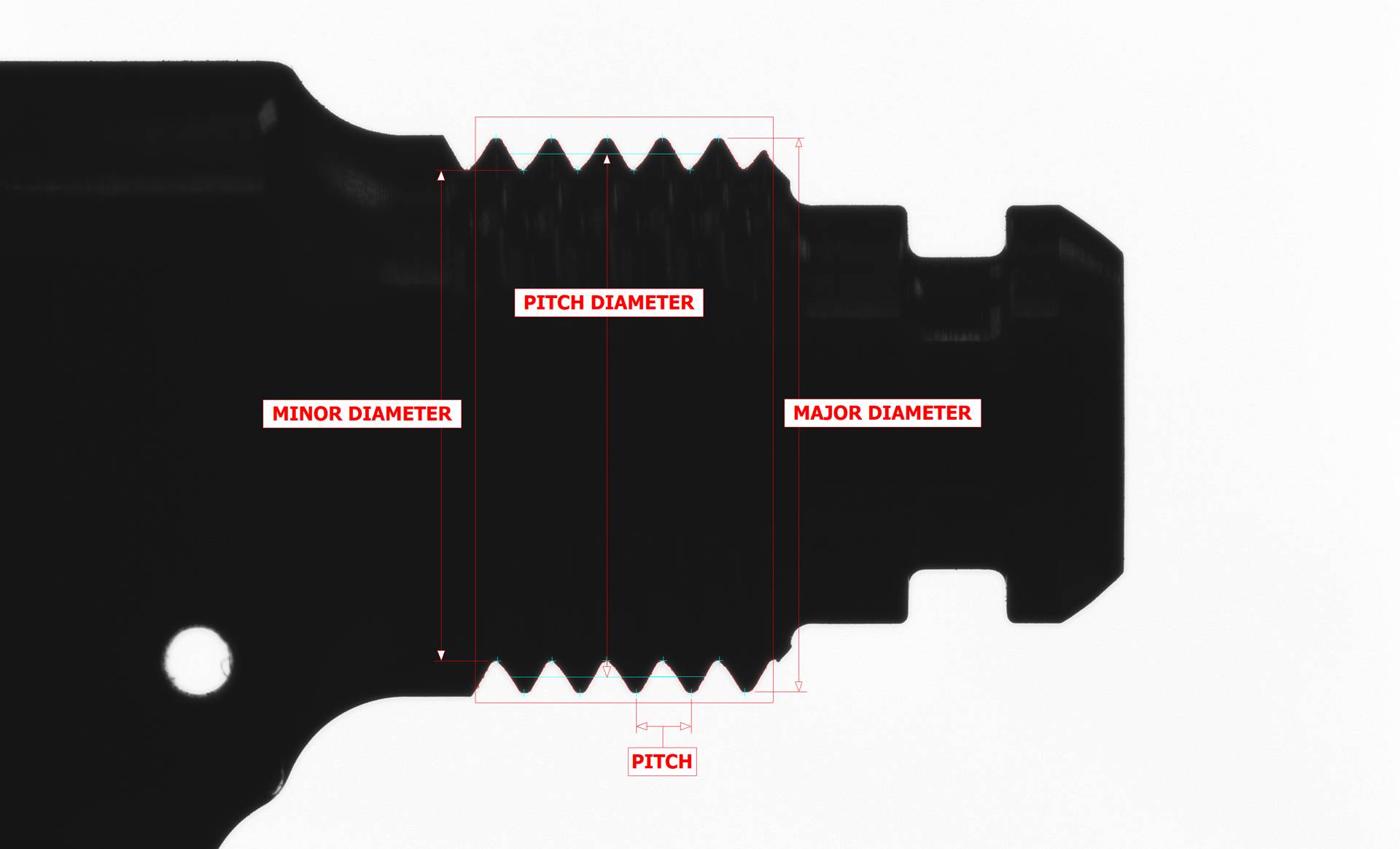

The 600 Series VisionGauge® system contains the entire set of powerful VisionGauge® measurement tools. It can measure:
Like all VisionGauge® systems, it can easily be interfaced to external equipment and machinery, such as an automated cell controller a collaborative robot for automated loading and unloading, for full “lights out” operation.
Measure turned parts with optical accuracy better than +/- 0.00015″.
Compact desktop format.
The 600 Series VisionGauge® system is very robust and shop-floor-ready. With its intuitive Windows interface, it’s extremely easy to use.
