500 Series
Benefits of the VisionGauge® Digital Optical Comparator:
The VisionGauge® Digital Optical Comparator is a fully digital device that works as a reliable drop-in replacement to the traditional optical comparator. It offers convenience for users, allowing you to work directly with your part’s CAD file without the need for overlays, templates, or Mylars™.
This digital profile projector is designed with patented technology and sub-pixel accuracy. It lets you perform accurate and precise measurements and efficiently compare parts against their respective CAD drawings. This streamlined functionality effectively shortens the inspection process without compromising precision and accuracy.

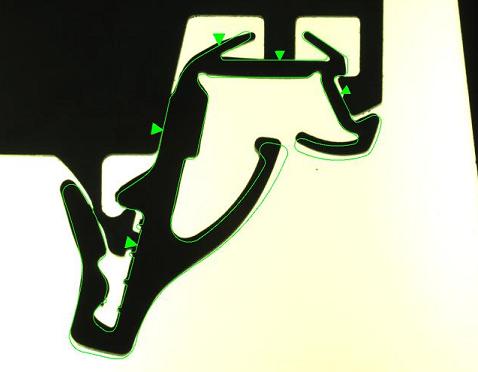

The 500 Series is an automated optical comparator that features a robust and extremely easy-to-use technology. It’s equipped with the VisionGauge® system’s patented CAD Auto-Align™ and CAD Auto-Pass/Fail™ programs, making it easy to use directly on the shop floor. The CAD Auto-Align™ tool automatically aligns the overlay for a fully automated CAD-to-part comparison. Meanwhile, the CAD Auto-Pass/Fail™ tool computes and displays any deviation from nominal and determines out-of-tolerance measurements in real time. In addition to proprietary patented technology, it also has our patent-pending Tooth Checker™ tool to accurately locate roots and crests in toothed parts.
The full digital capability minimizes the device’s margin of error and leaves no room for operator mistakes or operator-to-operator variation. It can also collect complete electronic documentation without human intervention. These include all measurements, pass/fail results, statistics, and high-resolution images of every part inspected.
The 500 Series Digital Optical Comparator is a powerful and versatile device suitable for measuring both small and large parts. Unlike traditional optical comparators, this machine offers numerous benefits at a competitive price. Benefits include the following:
The 500 Series VisionGauge® Digital Optical Comparator boasts unique features. Some of its cutting-edge features include the following:

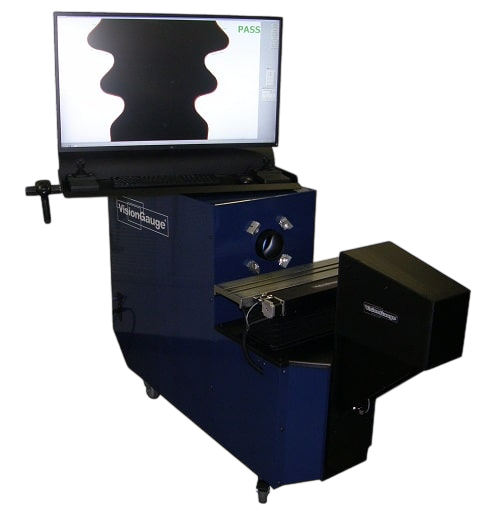

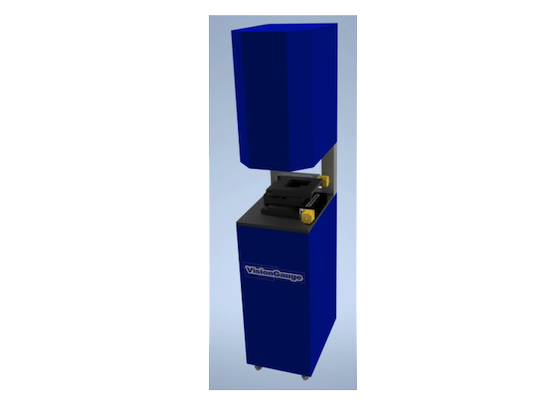

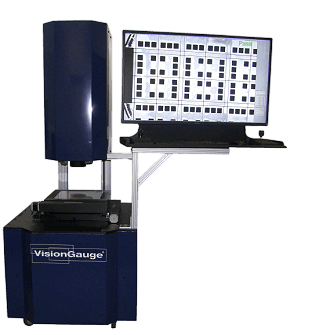

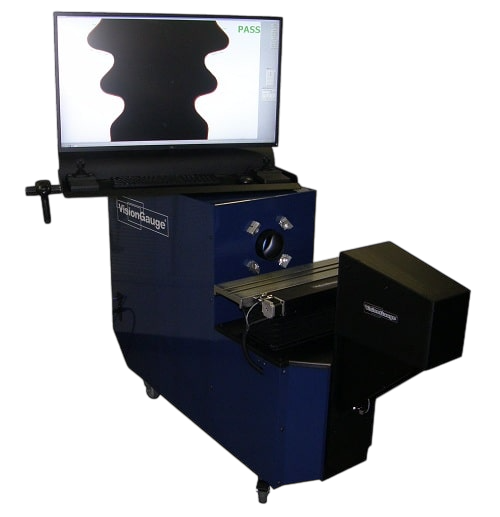

The 500 Series VisionGauge® Digital Optical Comparator is a high-performing device designed for the high-accuracy inspection of a variety of parts, whether small, large, light, or heavy. This reliable inspection equipment is available in vertical and horizontal configurations and caters to a wide range of industrial applications.
Learn more about the 500 Series digital optical comparators or other devices from the VisionGauge® digital comparators collection. Contact us to request pricing details or for additional product information.
Learn More
