VisionGauge® Series Desktop Inspection and Measurement Systems

Advantages of Our Desktop Inspection and Measurement System

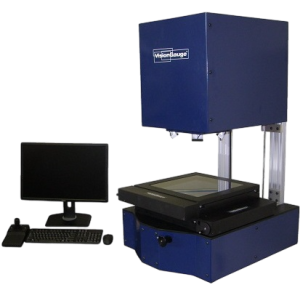

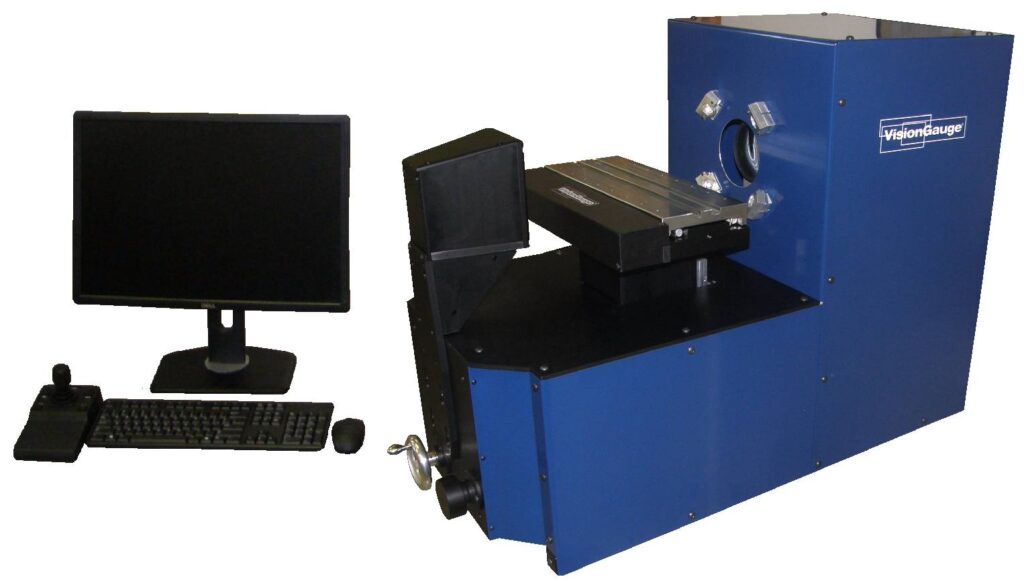

This desktop optical comparator is a versatile machine equipped with automatic data collection technology. It can obtain images, gather data, and generate reports without operator-to-operator variation. It’s a convenient tool offering advantages over traditional comparators. These advantages include:

• Small footprint: This device features a compact tabletop structure that can accommodate a variety of parts and fixtures. Its space-saving design makes it ideal for inspections conducted within the shop floor or manufacturing facility.
• User-friendly interface: The device is built with an intuitive operator interface that ensures accurate results while remaining easy to set up and use.
• Flexibility: Single magnification and precision optics, combined with the extended depth of field, allow a long working distance for maximum flexibility.
• Convenience: This device’s built-in statistical process control and data exchange capabilities make reporting results easy and convenient. It automatically prepares reports on all collected images, measurements, and statistics for thorough documentation.

Our optical inspection systems are continuously being improved with updates. The constant innovation enables us to cater to a wide range of industrial inspection applications with enhanced speed and accuracy. Our device’s features include:

• The VisionGauge® extensive set of software tools for accurate measurements and image analysis
• 12″ x 12″ measurement envelope
• Manual storage movement and inspection on 3 axes
• 0.25-micron resolution encoders on the X and Y axes

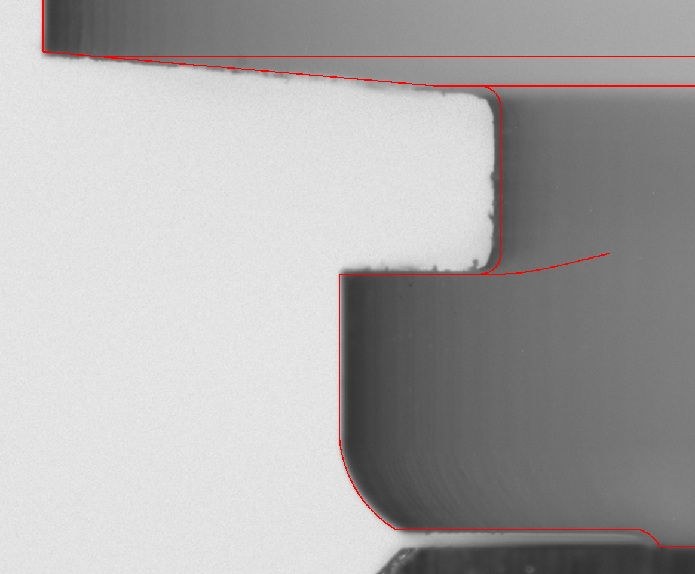

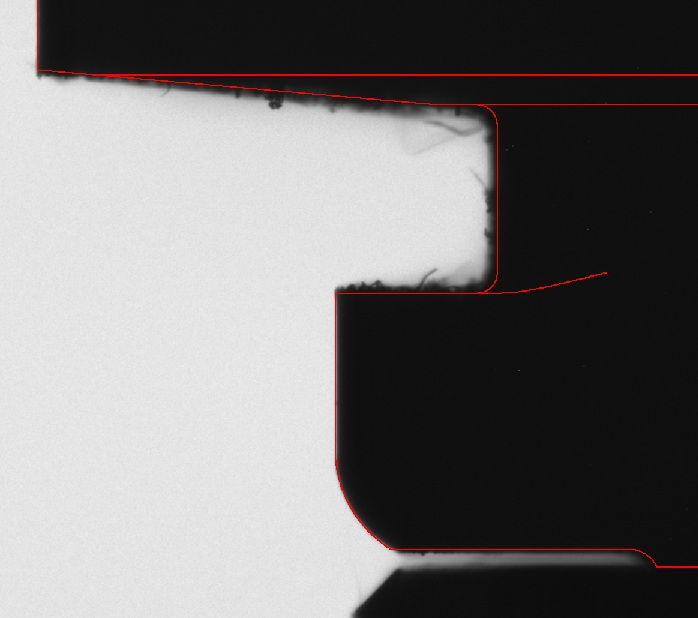

• Ultra-bright, repeatable LED computer-controlled illumination
• Robust design with no consumable parts
• Optional LASER module for Z-axis height measurements
• Customizable optical configurations and workholding
