The VisionGauge® Report Builder Automates Inspection Results Report Generation for Quality Assurance and Traceability

The VisionGauge® Report Builder is a powerful tool designed to streamline the process of creating, customizing, and sharing professional inspection reports. Built with efficiency in mind, the Report Builder integrates seamlessly with VisionGauge® measurement and inspection systems, such as the VisionGauge Digital Optical Comparator, to transform raw data into polished, customer-ready documentation. The Report Builder features enhanced capabilities that simplify report creation while giving users greater flexibility in personalizing reports to their specific requirements.

Engineers and operators gain efficiency by eliminating timely data transfers to third party programs, while managers and quality professionals receive consistent, accurate documentation they can trust. The ability to incorporate company logos and custom headers enhances professionalism, making every report presentation-ready.

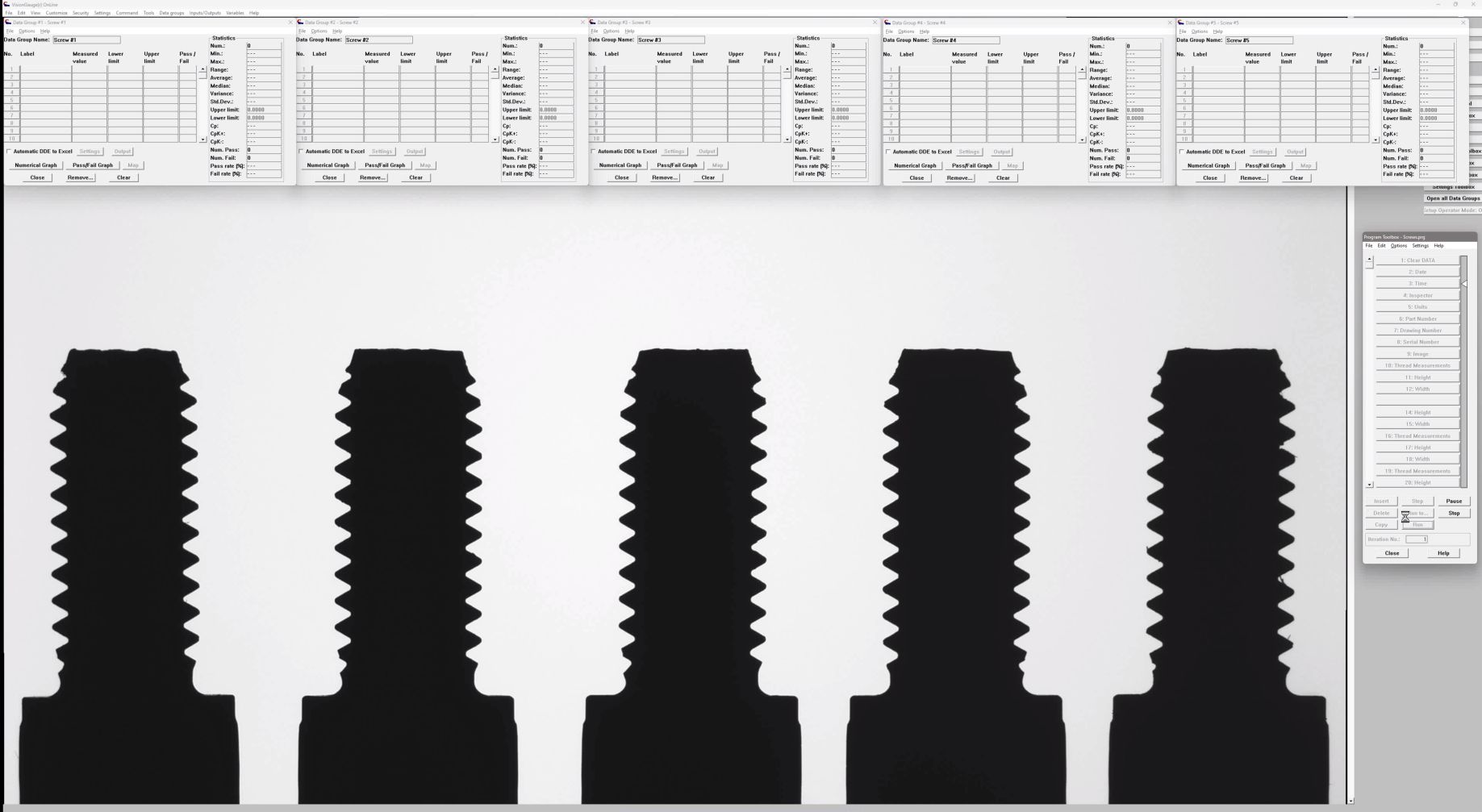

VisionGauge results for Report Builder

VisionGauge® program prepares to capture images and launch the Report Builder after inspection.

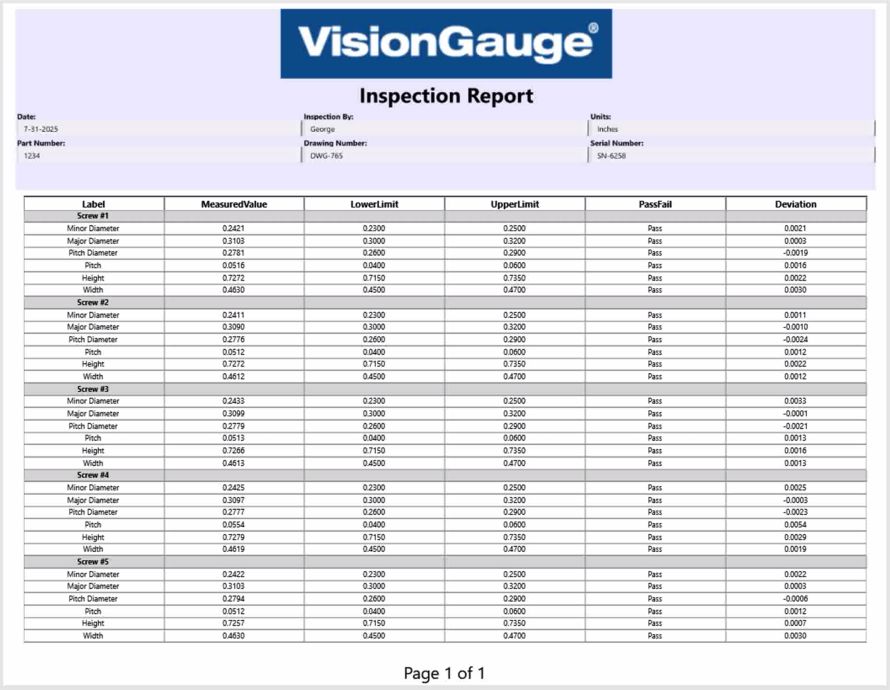

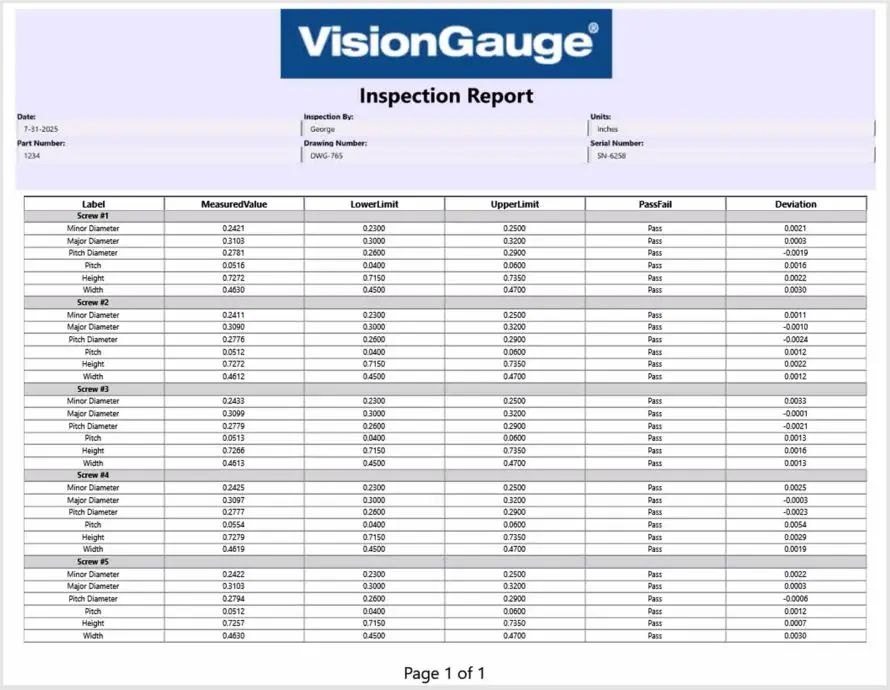

VisionGauge Report Builder custom inspection report

VisionGauge® Report Builder populates the inspection program’s customized report template automatically.

Overview Video

Automated Reporting Features

Benefits

The new Report Builder includes several useful features:

  • Customizable Layout Options: Users can quickly set page orientation, adjust margins, and decide whether to include page numbers to setup a professional appearance.
  • Logo Integration: Companies can easily insert their logos, adjust size and positioning, and apply them consistently across all report pages to ensure every report aligns with corporate branding standards.
  • Dynamic Header Items: Users can add, rename, and resize header items such as part number, lot number, serial number, operator, inspection date, etc. These fields can be arranged flexibly to best fit the requirements of different industries and reporting standards. Auto-fill key headers transferred from inspection program variables to boost efficiency and accuracy.
  • Measurement Data Integration: The system directly imports and formats inspection results automatically the with same precision as in VisionGauge® OnLine. Data groups can be organized by section, side, or feature of the inspected part, providing clear and intuitive presentation.
  • High-Resolution Images: Inspection images are embedded in landscape orientation, ensuring that visual data is presented clearly to support the numerical results.
  • Print and Export Flexibility: Reports can be previewed, exported to PDF, or sent directly to print. The high-quality output guarantees clarity and professional presentation whether delivered digitally or in hard copy.

The VisionGauge® Report Builder delivers the following benefits:

  • Streamlines report creation and databasing for complete device inspection history.
  • Reporting is built directly into inspection programs so a single program can capture all measurements, images, and save the inspection report to a .pdf file on the network completely automatically, without operator intervention.
  • Quickly and easily build custom reports and automatically populate key fields using real-time data ensuring consistency across every inspection.
  • The VisionGauge® Report Builder ensures repeatability and reliability:  Templates can be reused across multiple projects, reducing setup time and standardizing reporting practices.
  • High-resolution images substantiate each inspection report, supporting both internal quality initiatives and customer requirements.
  • Automatically build a complete, searchable inspection history with zero extra effort for every part.
  • Enables organizations to deliver faster, clearer, and more professional detailed inspection documentation directly from the inspection system – helping them stand out in competitive markets where accuracy and presentation quality matter.

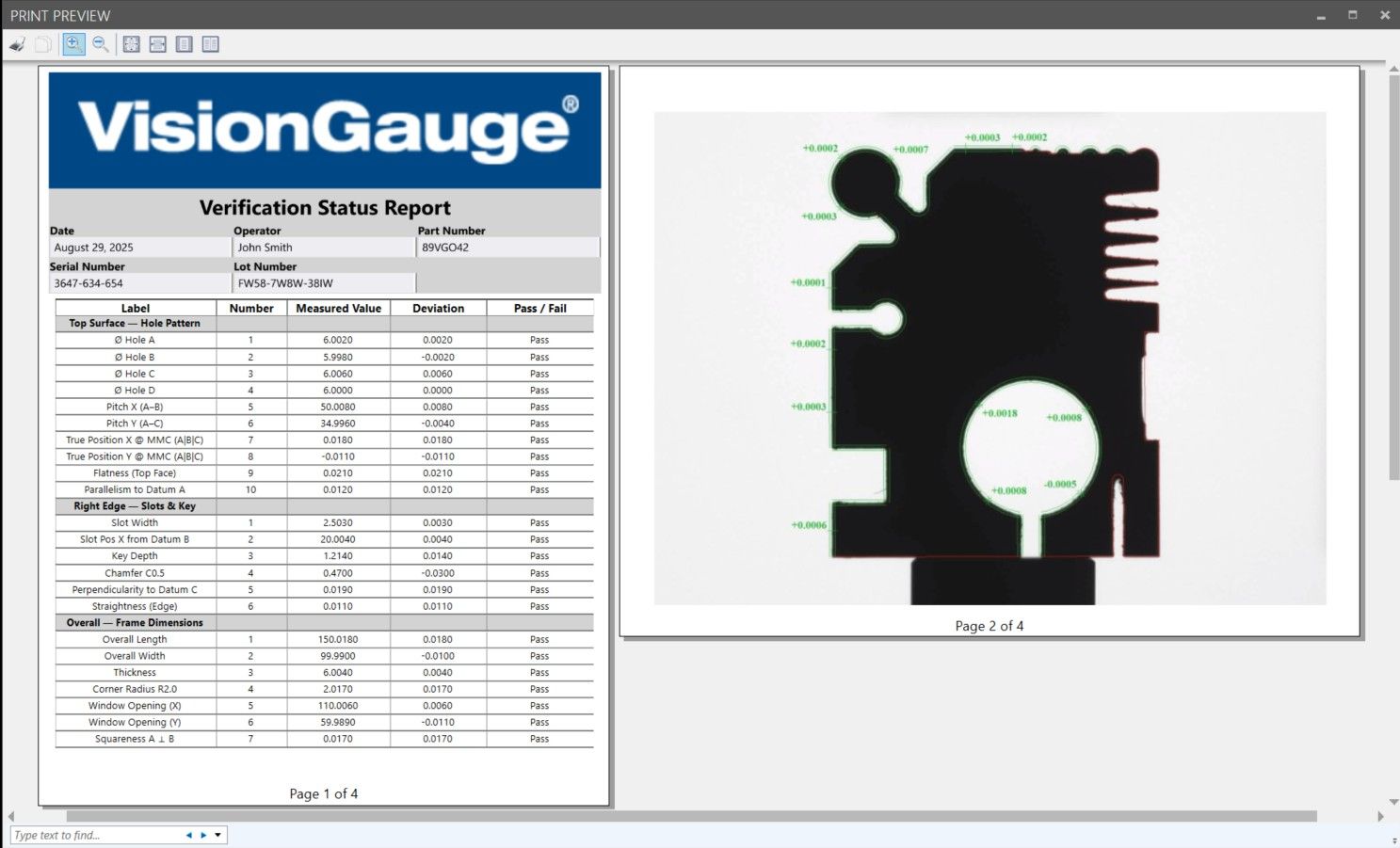

VisionGauge Report Builder Customized Report Preview

Save multiple report templates to ensure every report for every part is presentation ready, repeatable, and reliable.

With its intuitive interface, customizable templates, and advanced output options, the VisionGauge® Report Builder is an indispensable tool for modern manufacturing and quality control. Contact us to learn how the Report Builder can improve your reporting process.

Contact VISIONx for VisionGauge® Technology Today

Contact us with your application requirements, and visit our Applications page for more examples of applications VisionGauge® Digital Optical Comparators can solve.
