Inspecting and Measuring Thread Rolling Dies

VisionGauge® Digital Optical Comparators are the ideal solution for the inspection and measurement of Thread Rolling Dies

  • Compare thread rolling dies directly to their CAD data 100% automatically (no need for overlays!).
  • The VisionGauge® Digital Optical Comparator’s proprietary CAD Auto-Align™ tool aligns a CAD/DXF drawing straight to its part, with customizable options to produce the best results.
  • The CAD Auto-Pass/Fail™ tool produces an operator-independent PASS/FAIL result, completely automatically.
  • Accurate and repeatable inspections directly on the shop floor!
  • All part geometries are supported – the possibilities are limitless!
  • The system can automatically locate and check the features of interest according to your specifications.
  • VisionGauge® Digital Optical Comparators support variable tolerances. Tighter tolerances can be applied in critical areas and looser tolerances elsewhere.
  • The system automatically measures a part’s deviations from nominal at critical points or along entire segments of the part’s edges. Edges that lie outside of the defined tolerance band are quickly located and displayed.
  • Automated collection of measurements, statistics, images, and other data for complete documentation.
  • Obtain faster, more accurate, and more reliable results than when using traditional inspection methods and systems.
  • The system is extremely easy to use: It can be setup so that – for the operator – everything is done using the barcode reader.

VisionGauge® Digital Optical Comparators are well-adapted to surmount the complications of thread rolling die inspection and measurement, improving the quality of your inspection process and results.

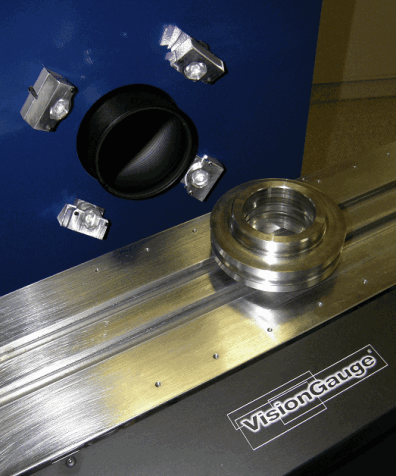

Thread-Rolling-Die-Inspection-e1511906191849-1
No fixturing is required. The system can correct for part-to-part placement variation.

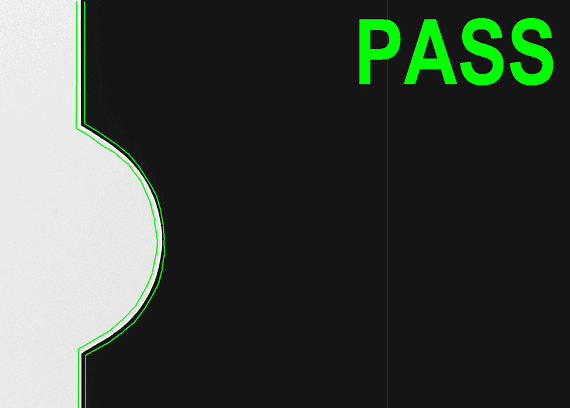

Thread-Rolling-Dies-Inspection-02
Automate comparison of a part to its CAD/DXF data for a reliable, highly-accurate overall PASS/FAIL result.

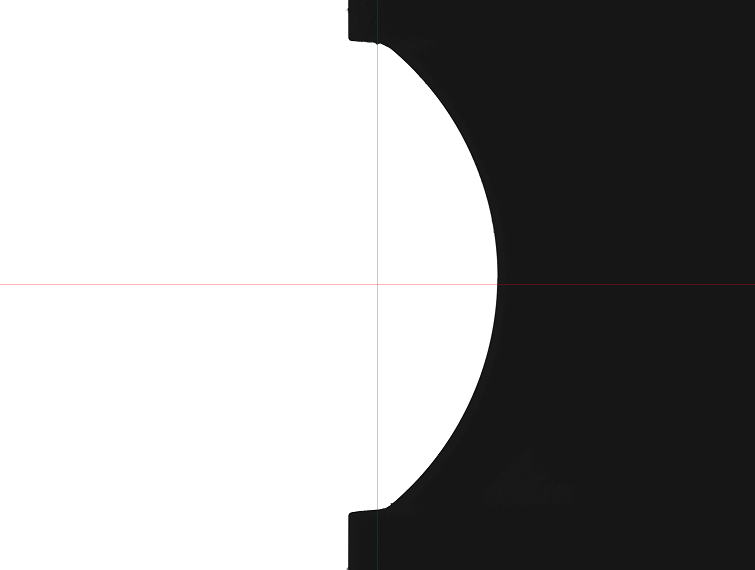

Thread-Rolling-Dies-Measurement-02
VisionGauge® Digital Optical Comparators capture extremely crisp and clear ultra-high-resolution images. A part’s fine details truly stand-out for inspections.

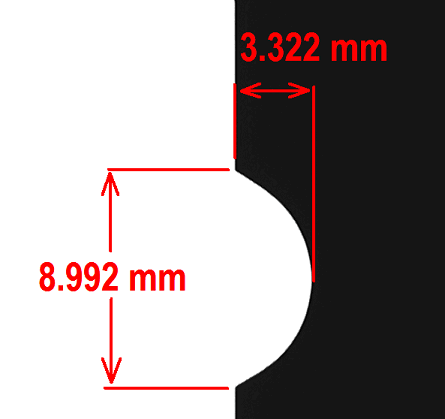

Thread-Rolling-Die-Measurements
VisionGauge® Digital Optical Comparators have a broad set of high-accuracy measurement tools.
Super-extended_travel_500_Digital_Optical_Comparator-min-Photoroom-1

Improve Your Thread Rolling Die Inspection Process with VisionGauge®

VisionGauge® Digital Optical Comparators are the new standard for obtaining fast, accurate, and high-quality inspections in the thread rolling die industry. Contact us for more information about how our systems and software can solve your application.

Download a .pdf version of this VisionGauge® Digital Optical Comparator Application Note. Also, learn more about additional applications solved using VisionGauge® Digital Optical Comparators and Profile Projectors.
