Performing a quality orthopedic implant inspection presents a number of challenges. There are a wide variety of implant sizes and shapes, and they have complex geometries that require tight tolerances. 100% inspection is a necessity and it is unacceptable to miss even one defect. It is common for implants to be manufactured in small lots so there is very high product changeover. Therefore, it is very advantageous that product inspection takes place directly on the production floor. And if any programming is required on the quality inspection system, it needs to be fast, easy, and as error-free as possible.
The VisionGauge® Digital Optical Comparator was originally developed with extensive collaboration with a large medical OEM to meet the requirements of orthopedic implant measurement and inspection, so this inspection is one of their ideal applications.

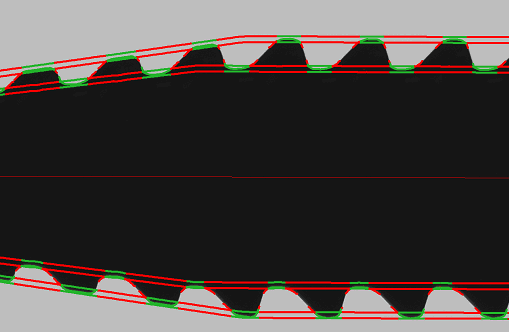

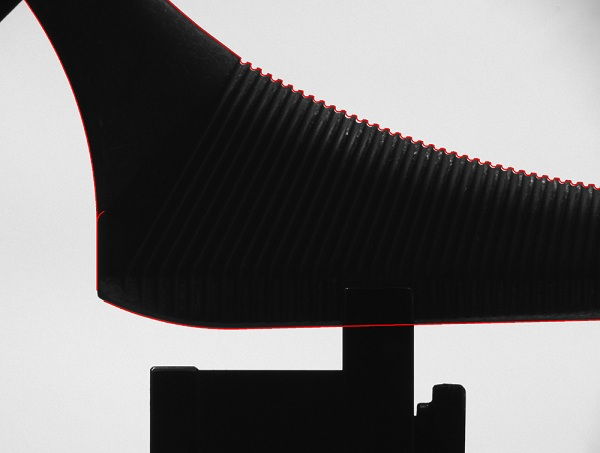

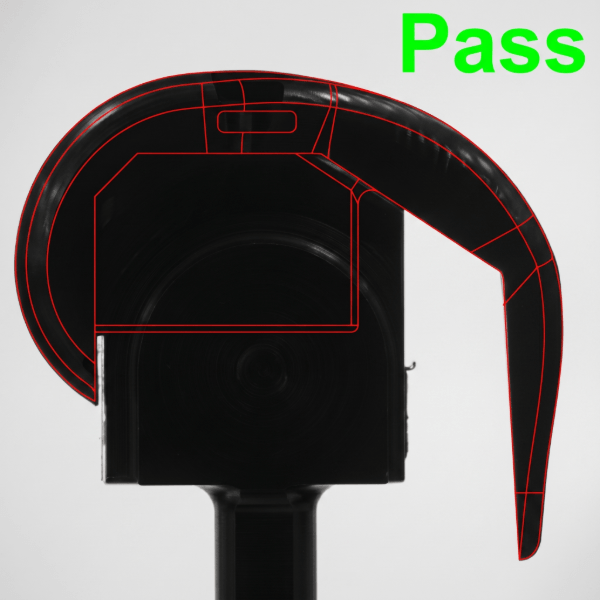

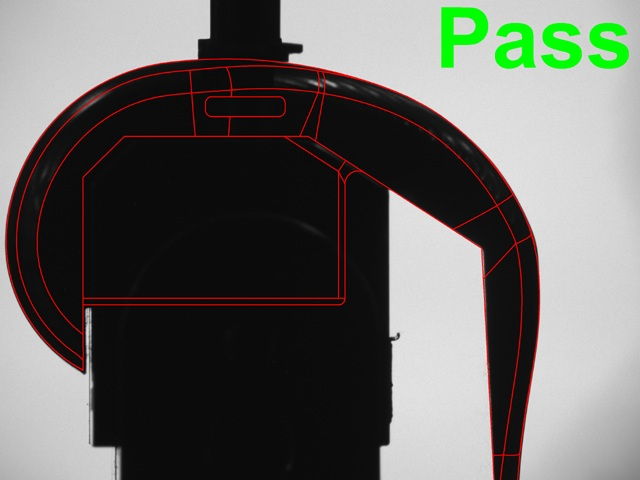

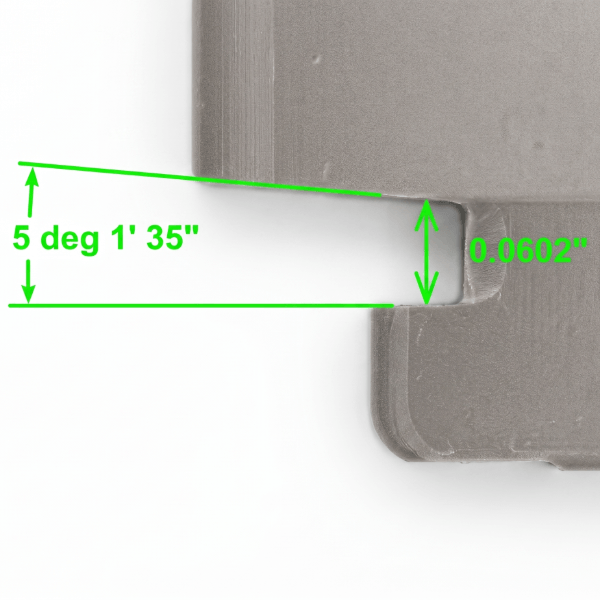

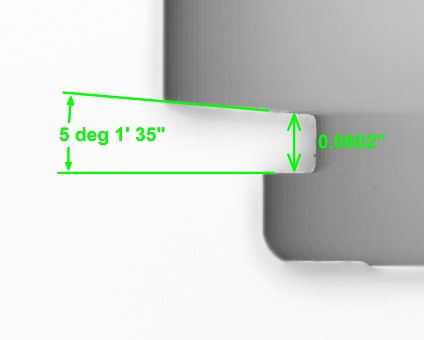

These systems are accurate, very fast, and require minimal to no programming. The system can operate directly on the shop floor and can produce automated inspection reports and gather complete device history: Collect images, Pass/Fail results, measurements, statistics with graphs/charts and output all data from an inspection to a centralized database. Unique and patented tools like CAD Auto-Align™ and CAD Auto-Pass/Fail™ efficiently and automatically compare a part directly to its CAD file to very high accuracy, automatically and completely without operator variation or subjectivity. These systems are successful on a broad range of applications. The VisionGauge® Digital Optical Comparator has no limitations to part geometry and a wide range of implants are easily supported, including both metal and plastic.
There are many reasons why VisionGauge® Digital Optical Comparators are employed by orthopedic implants manufacturers to inspect and measure the medical implants and devices they produce:

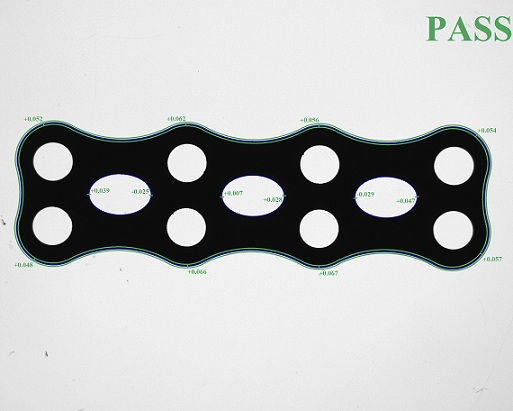

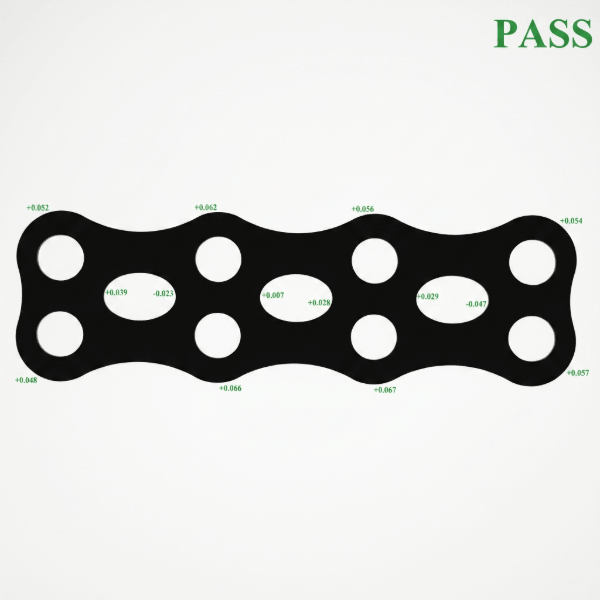

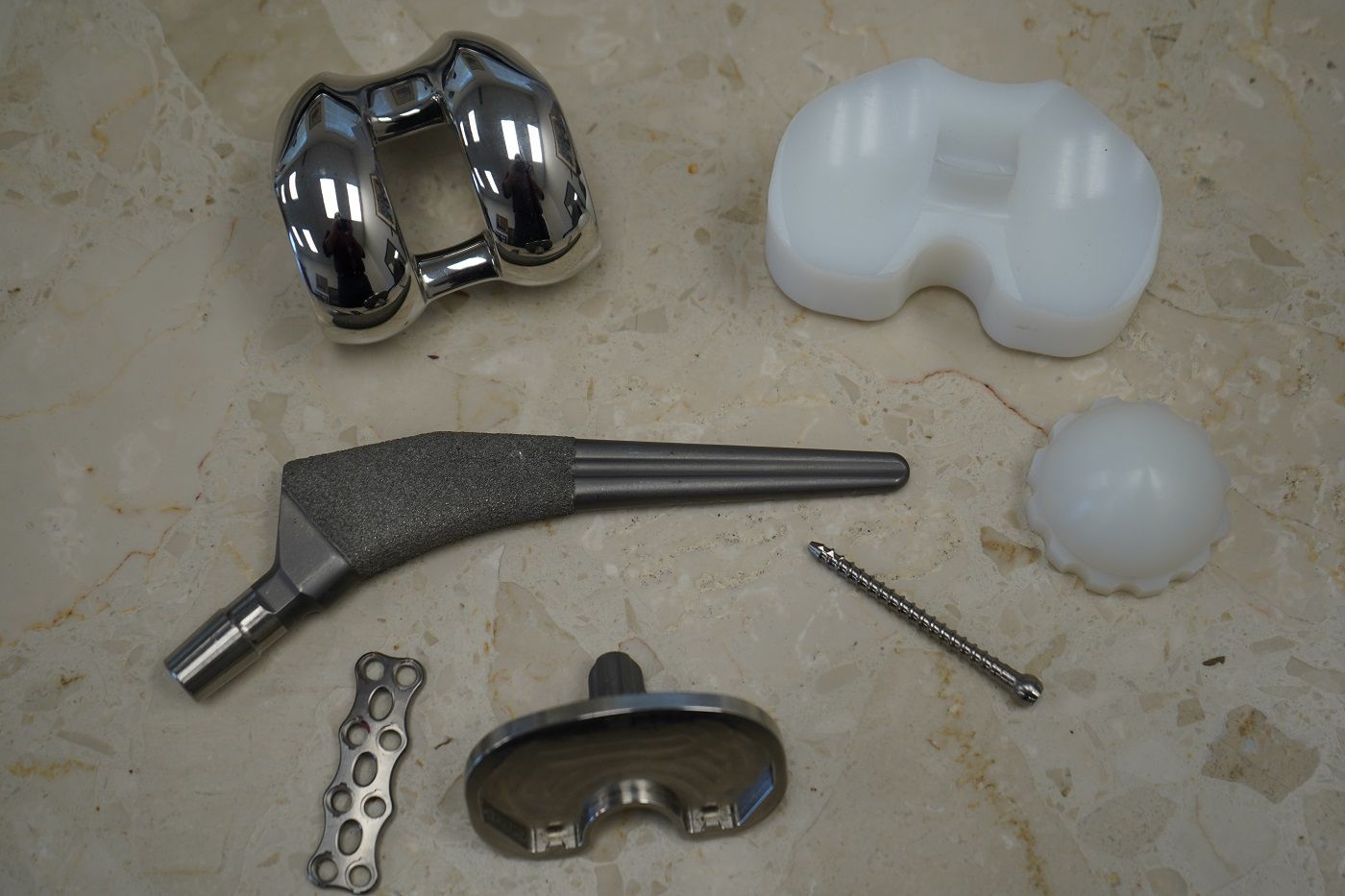

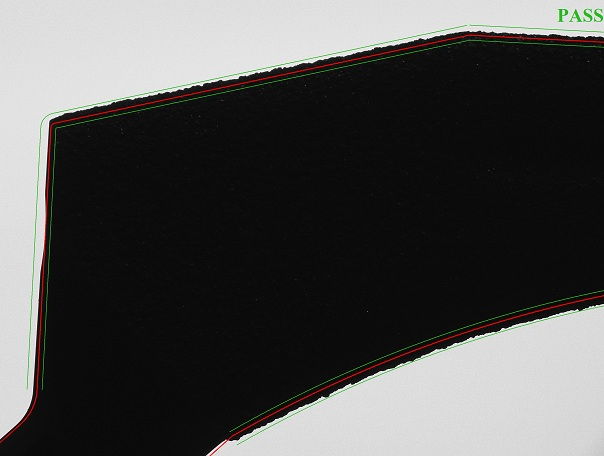

Our 500 Series Digital Optical Comparators are perfect to inspect a wide range of orthopedic implants and devices: knees, hips, plates, shoulders, and many more…
The VisionGauge® Digital Optical Comparator is the new standard for inspecting orthopedic implants in the medical industry. Contact us to find out how we can solve your application.
Download a .pdf version of this VisionGauge® Digital Optical Comparator Application note here. Learn more about other inspection and measurement applications solved by our systems. A press release from November 2023 is also available.
