Portable Vision Inspection/Measurement and Smart Camera Bundles

Powerful & Easy to use Laptop-Based Mobile Visual Inspection Systems

VisionGauge® laptop-based mobile visual inspection, measurement, and data collection systems are the ideal solution for mobile, remote, and field inspection and measurement applications. These portable measurement systems produce high quality and high-resolution full color images and are compatible with almost all laptop and notebook PCs. They also support a wide range of video sources: standard video cameras, specialty video sources (borescopes, ruggedized and waterproof cameras, microcameras, flexible and rigid fiber-based scopes, handheld cameras, etc...) and even VCRs and camcorders. These general-purpose mobile systems can solve a wide range of industrial, military, and R&D applications, such as:

  • General mobile testing, image & data collection, and reporting,
  • Remote viewing, imaging, & non-contact measurement,
  • Flaw detection & wear assessment,
  • General Non Destructive Testing (NDT) and remote visual inspection,
  • Field surveillance,
  • Difficult remote applications,
  • Field inspection of tanks, vessels, tubes, pipes...
  • Internal inspection of die castings, turbine housings...
  • Etc...
Portable Vision Inspection system
Mobile Visual Inspection Systems

These portable video inspection systems are very competitively priced and can be supplied either as a complete turnkey solution or as a board level and software product. The basic system includes our powerful and easy to use VisionGauge® machine vision software package with its familiar Windows™ interface, a high-resolution megapixel digital color camera, a lens, and a compatible notebook computer. This is a complete, ready-to-run solution!

Download a pdf about our Laptop-based visual inspection systems.

Smart Camera Bundles

The VisionGauge® / Smart Camera Bundles are complete, all-in-one solutions for both imaging and machine vision applications. They include either the VisionGauge® or VisionGauge® OnLine software package as well as a Sony Smart Camera, a self-contained unit that includes a camera and PC that runs the Windows™ XPe operating system.

VisionGauge Smart Camera bundles

The VisionGauge® / Smart Camera Bundles come with everything fully installed and configured and are ready to run right away. They include all of VisionGauge®'s powerful software tools. And because of VisionGauge®'s simple and intuitive interface, they are extremely easy to setup and use.

These Smart Cameras now can also interface to our custom-designed VisionGauge Camera Interface Module and Illumination Controller. This module supplies power to the camera, allows compact illumination control, and breaks out all of the camera's I/O and serial signals.

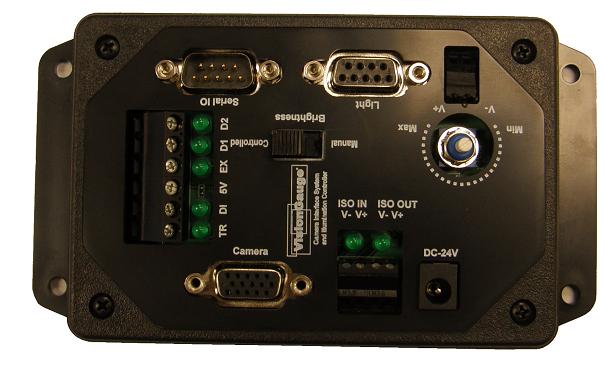

Smart Camera Interface Module and Illumination Controller

VisionGauge® camera illumination controller

The VisionGauge® Camera Interface Module and Illumination Controller can be used either in conjunction with any of the Sony Smart Cameras or as a "stand alone" illumination controller.

When used in conjunction with any of the Sony Smart Cameras, the VisionGauge® Camera Interface Module and Illumination Controller:

  • Powers the camera
  • Breaks out all of the camera’s I/O and Serial signals
  • Controls the illumination



When used as a "stand alone" illumination controller, the VisionGauge® Camera Interface Module and Illumination Controller can be used to:

  • Manually control the illumination intensity (using a trim pot)
  • Control the illumination intensity via a computer’s output (0-5V).



The VisionGauge® Camera Interface Module and Illumination Controller is compatible with 24V continuous LED illuminators and uses an industry-standard 9-pin "D" connector (i.e. "DB-9 female" on the controller).

The VisionGauge® Camera Interface Module and Illumination Controller includes the required 24V power supply and is available as either an enclosed or a board-level product.

Download a pdf with information about the VisionGauge Smart Camera Interface Module.

The VisionGauge® / Smart Camera System Bundles are perfectly suited for a wide range of applications including industrial, imaging, microscopy, image analysis, machine vision inspection, and quality control.

Product Overview pdf

The VisionGauge® / Smart Camera Bundles include either the VisionGauge® or VisionGauge® OnLine software package. Please follow the links below for more information about these machine vision software packages:

Information about the VisionGauge® software package (pdf)

Information about the VisionGauge® OnLine software package (pdf)

=
