VisionGauge^®'s Weld Measurement Tools

Powerful & easy to use:

VisionGauge® has easy to use and very accurate measurement tools to measure:

• Generic Welds (i.e. Leg, Throat & Root measurements)

• Concave Isosceles 45 Welds

• Convex Toe – Toe Welds

As is the case with all of VisionGauge®’s measurement tools, the weld measurements can be saved to disk, sent directly to another application, included in a report, etc. VisionGauge® is also able to compute measurement statistics and create clear and effective reports with the relevant weld measurement data.

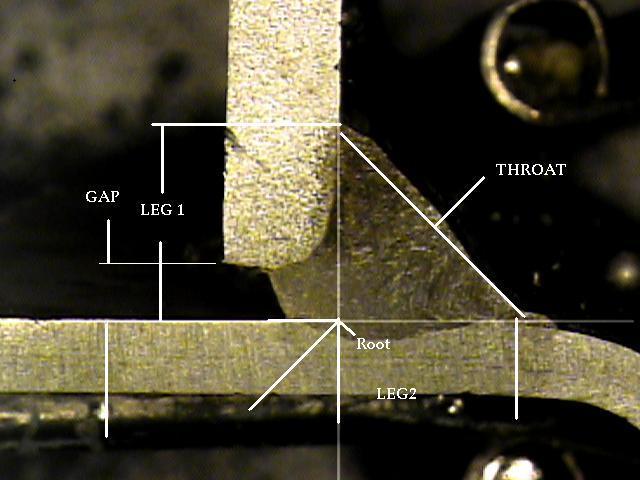

[Weld Measurement Tools]
